Couplings for plant facility piping or built into machinery
Couplings for plant facility piping or built into machinery
Model No. | 633-E-AL | |
---|---|---|
Main material | ||
Function | ||
Fluid | Water (non-potable) Air Oil | |
Legal compliance | RoHS 2 compliant | |
Material details | Coupling body | Aluminum alloy (ADC12, 5"~ AC4CH) |

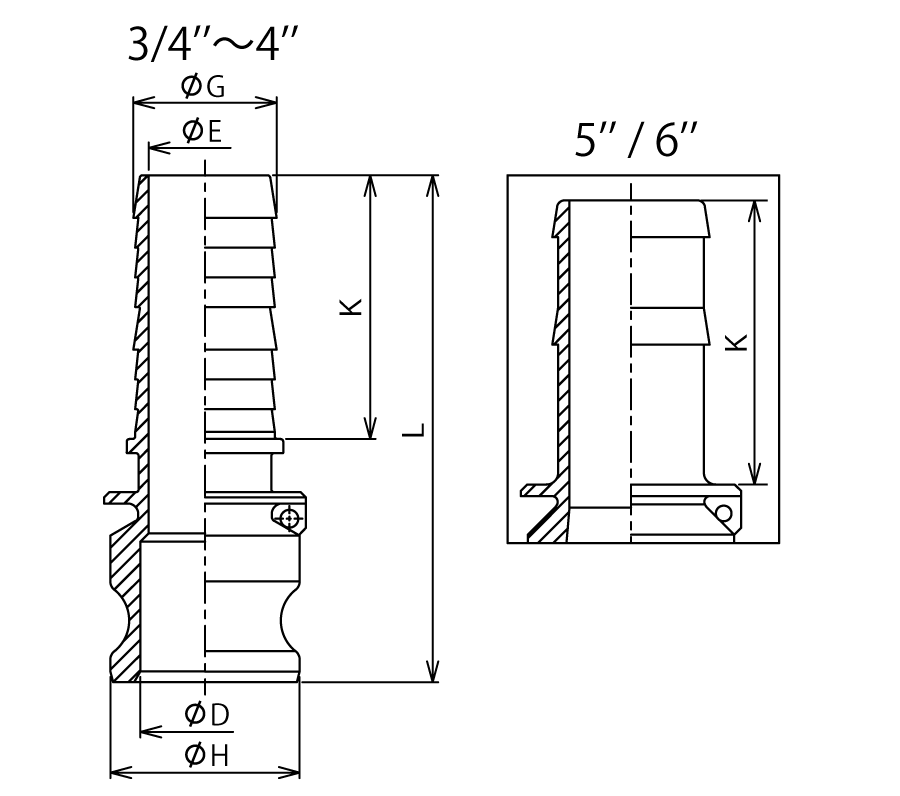

Model | Coupling specifications | Dimensions (mm) | |||||
---|---|---|---|---|---|---|---|
D | E | G | H | K | L | ||
633-E3/4AL | 1/2" | 20 | 14 | 21 | 32 | 51 | 101 |
633-E1AL | 3/4" | 21 | 18 | 27 | 37 | 58 | 114 |
633-E1-1/4AL | 1" | 28 | 24 | 34 | 45 | 59 | 126 |
633-E1-1/2AL | 1-1/4" | 33 | 29 | 40 | 53 | 74 | 143 |
633-E2AL | 1-1/2" | 44 | 39 | 53 | 63 | 87 | 164 |
633-E2-1/2AL | 2" | 56 | 51 | 67 | 76 | 93 | 169 |
633-E3AL | 2-1/2" | 70 | 65 | 79 | 92 | 113 | 190 |
633-E4AL | 3" | 96 | 90 | 105 | 120 | 127 | 209 |
633-E5AL | 4" | 114 | 114 | 134 | 146 | 127 | 196 |
633-E6AL | 5" | 149 | 142 | 157 | 176 | 146 | 224 |
* The 3/4" adapter can also be connected to a 1/2" coupler. * Die-casting used for 4" and smaller products. * The barb fitting shape may vary depending on the size.
*We recommend using couplers and adapters made of the same size and material when connecting fittings. Using couplers and adapters made of different materials may lead to corrosion (electrical corrosion).
*When crimping is used to tighten a hose connection, depending on the conditions the hose shank may become deformed or crack. Therefore ensure there are no leaks, cracks or other abnormalities before use.
![]() |
Hose name | ECORON HOSE | TOYOFUSSO HOSE | TOYOFUSSO-E HOSE | TOYOFUSSO-S HOSE | TOYOFUSSO SOFT HOSE | TOYOFUSSO SOFT−S HOSE | HYPER TOYORON HOSE | HYBRID TOYOFOODS HOSE | HYBRID TOYORON HOSE | HYBRID TOYOSILICONE HOSE | SUPER TOYORON HOSE | TOYOBIO PRO HOSE | TOYOFOODS HOSE | TOYORING HOSE | TOYORING-F HOSE | TOYORON HOSE | TOYOSPRING HOSE | TOYOSILICONE HOSE | TOYOSILICONE-P HOSE | TOYOSILICONE-S HOSE | TOYOSILICONE-S2 HOSE | TOYOSILICONE STEAM HOSE | TOYOSILICONE THERMO HOSE | TOYODELIVER HOSE | DELIVER HOSE | FLAMEBLC HOSE | FUSSOTHERMO-S100°C HOSE | HYBRID TOYODROP HOSE | ECORON-S HOSE | TOYOFOODS-S HOSE | TOYOFOODS EARTH HOSE | TOYOTOP-E HOSE | TOYOTOP-E100°C HOSE | TOYOSILICONE STEAM S HOSE |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Main material | Polyolefin resin | Tetrafluororesin | Tetrafluororesin | Tetrafluororesin | Tetrafluororesin | Tetrafluororesin | Soft PVC | Soft PVC | Soft PVC | Silicone rubber | Soft PVC | Soft PVC | Soft PVC | Soft PVC | Soft PVC | Soft PVC | Soft PVC | Silicone rubber | Silicone rubber | Silicone rubber | Silicone rubber | Silicone rubber | Silicone rubber | Soft PVC | Soft PVC | Soft PVC | Tetrafluororesin | Soft PVC | Polyolefin resin | Soft PVC | Soft PVC | Soft PVC | Special polyurethane resin | Silicone rubber | |
Operating temperature range | -5℃~60℃ | -20℃~80℃ | -20℃~80℃ | -20℃~80℃ | -5℃~70℃ | -5℃~70℃ | -5℃~70℃ | -5℃~70℃ | -5℃~60℃ | -30℃~130℃ | -5℃~60℃ | -5℃~60℃ | -5℃~70℃ | -5℃~60℃ | -5℃~70℃ | -5℃~60℃ | -5℃~60℃ | -30℃~150℃ | -30℃~100℃ | -30℃~150℃ | -30℃~150℃ | -30℃~140℃ | -30℃~120℃ | -5℃~60℃ | -5℃~60℃ | -5℃~60℃ | -5℃~100℃ | -5℃~60℃ | -5℃~60℃ | -5℃~70℃ | -5℃~70℃ | -10℃~50℃ | -5℃~100℃ | -30℃~140℃ | |
Model No. | EC | FF | FFE | FFS | FFY | FFYS | HPT | HTF | HTR | HTSI | ST | TBP | TFB | TG | TGF | TR | TS | TSI | TSIP | TSIS | TSIS2 | TSISTM | TSITH | TW | W | FB | FSTH100C | HTD | ECS | TFS | TFE | TPE | TPE100C | TSISTMS | |
Coupling model |
Compatible hose nominal inner diameter (mm)
Coupling specifications
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
633-E3/4AL |
1/2"
|
◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | - | - | - | - | - | - |
633-E1AL |
3/4"
|
◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | - | - | - | - |
633-E1-1/4AL |
1"
|
◯ | ◯ | - | ◯ | - | ◯ | ◯ | - | - | ◯ | ◯ | - | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | - | ◯ | ◯ | - | - | - | ◯ | - | - | - | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ |
633-E1-1/2AL |
1-1/4"
|
◯ | ◯ | - | ◯ | - | ◯ | ◯ | - | - | ◯ | ◯ | - | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | - | ◯ | ◯ | - | - | - | ◯ | - | - | - | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ |
633-E2AL |
1-1/2"
|
◯ | ◯ | - | - | - | ◯ | ◯ | - | - | - | ◯ | - | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | - | ◯ | ◯ | - | - | - | - | - | - | - | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ |
633-E2-1/2AL |
2"
|
- | - | - | - | - | - | - | - | - | - | ◯ | - | - | - | - | ◯ | ◯ | - | - | - | - | - | - | - | - | - | - | - | - | ◯ | ◯ | ◯ | ◯ | - |
633-E3AL |
2-1/2"
|
- | - | - | - | - | - | - | - | - | - | ◯ | - | - | - | - | ◯ | ◯ | - | - | - | - | - | - | - | - | - | - | - | - | ◯ | ◯ | - | ◯ | - |
633-E4AL |
3"
|
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ◯ | - | - | - | - | - | - | - | - | - | - | - | - | ◯ | ◯ | - | - | - |
633-E5AL |
4"
|
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
633-E6AL |
5"
|
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
