Steam/Hot water/Food products
Model | TSISTMS
Features
Related video
Download materials
Conventional rubber hose for steam that is 30-40% lighter for improved work performance.
Conventional rubber hose for steam that is 30-40% lighter for improved work performance.

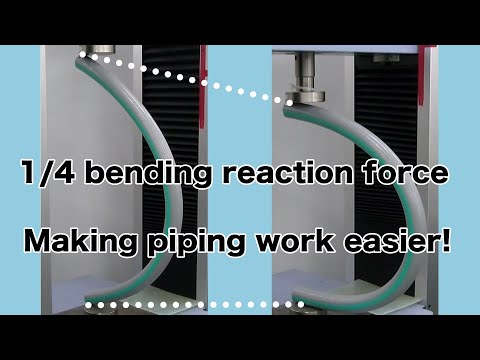

With 1/4th the bending resilience of conventional rubber hoses for steam, these hoses are supple, soft, and easy-to-handle for significant reductions in workload.
With 1/4th the bending resilience of conventional rubber hoses for steam, these hoses are supple, soft, and easy-to-handle for significant reductions in workload.
The steam hose surface is resistant to cracking even when used for long periods, preventing foreign object contamination caused by hose fragments.
The steam hose surface is resistant to cracking even when used for long periods, preventing foreign object contamination caused by hose fragments.
Made of silicone rubber with little odor, it enhances food safety by reducing odor transfer to products and reducing unpleasant odors.
Made of silicone rubber with little odor, it enhances food safety by reducing odor transfer to products and reducing unpleasant odors.
Steam/Hot water/Food products
Application | For steam/hot water/food products | |
---|---|---|
Fluid | ||
Function |
Positive pressure (pressure feed) Negative pressure (vacuum) High-pressure-resistant Heat-resistant Cold-resistant Transparent Flexible Kinking/collapse prevention Oil-resistant (animal/vegetable oil) Oil-resistant (mineral oil) Chemical-resistant Low odor Low elution Non-adhesive Antistatic Dew condensation prevention Abrasion-resistant Flame retardant Plasticizer-free Disposal sorting not required |
|
Regulatory | Food Sanitation Act No. 380 compliant FDA registered RoHS 2 compliant | |
Specification | Main material | Silicone rubber |
Reinforcing material | Specialized heat-resistant thread, SUS316 | |
Inner diameter | 32mm~50.8mm | |
Operating temperature range | -30℃~140℃ | |
Other | Steam (Max. 8 hours of continuous use per day) |
Model | Inner diameter × Outer diameter (mm) | Operating pressure (MPa) | Standard weight (kg/roll) | Standard length (m) | Minimum bending radius (mm) | |
---|---|---|---|---|---|---|
Steam ~140°C | ||||||
TSISTMS-32 | 32.0 × 43.5 | -0.1~0.5 | 0~0.3 | 10.0 | 10 | 225 |
TSISTMS-38 | 38.1 × 50.5 | -0.1~0.5 | 0~0.3 | 12.5 | 10 | 280 |
TSISTMS-50 | 50.8 × 64.5 | -0.1~0.3 | 0~0.3 | 8.5 | 5 | 390 |
Packing: Boxed Coloring: Gray/green line
* When using for steam, the saturated steam pressure should be 0.3 MPa (140°C) or less, and the hose should be used intermittently (max. 8 hours of continuous use per day) with one side open. Never use the hose in steam-tight conditions. Doing so will shorten the service life of the hose. When using steam, be sure to perform regular inspections and replacements based on the “Conditions and service life (replacement) guidelines.”
Warning
When using for steam, the saturated steam pressure should be 0.3 MPa (140°C) or less, and the hose should be used intermittently (max. 8 hours of continuous use per day) with one side open.Never use the hose in steam-tight conditions. Doing so will shorten the service life of the hose. When using steam, be sure to perform regular inspections and replacements based on the “Conditions and service life (replacement) guidelines.”
(1) Never use with the hose nonpolar organic solvents (benzene, toluene, hexane, etc.), hydrocarbon halogenide (methylene chloride, trichloroethane, etc.), high-concentrate strong acid or alkali, mineral oil, or vegetable or animal oil of 70 degrees centigrade or higher.
(2) Note that silicone rubber has high gas permeability.Use caution when using this product with gases.Be sure to check “Precautions for Using Our Products Safely” before choosing a product.
Hose details | Hose connection | Crimped | Crimped | Crimped | Crimped | Dedicated clamp |
---|---|---|---|---|---|---|
Coupling specifications | Coupler | Ferrule | Male | Hexagon nut | Ferrule | |
Main material |
Stainless steel
|
Stainless steel
|
Stainless steel
|
Stainless steel
|
Stainless steel
|
|
Model No. | HC | HF | HM | HNT | TC6-FS | |
Hose model |
Inner
diameter (mm) Outer
diameter (mm) |
![]() |
![]() |
![]() |
![]() |
![]() |
TSISTMS-32 |
32.0
43.5
|
◯ | ◯ | ◯ | ◯ | ◯ |
TSISTMS-38 |
38.1
50.5
|
◯ | ◯ | ◯ | ◯ | ◯ |
TSISTMS-50 |
50.8
64.5
|
◯ | ◯ | ◯ | ◯ | ◯ |
Hose details | Hose connection | Hose clamp tightening | Hose clamp tightening | Hose clamp tightening | Hose clamp tightening | Hose clamp tightening | Hose clamp tightening | Crimped | Hose clamp tightening | Hose clamp tightening | Hose clamp tightening |
---|---|---|---|---|---|---|---|---|---|---|---|
Coupling specifications | Coupler | Coupler | Coupler | Coupler | Adapter | Adapter | Coupler | Coupler | Coupler | Adapter | |
Main material |
Aluminum alloy
|
Stainless steel
|
Aluminum alloy
|
Stainless steel
|
Aluminum alloy
|
Stainless steel
|
Stainless steel
|
Resin (PP)
|
Resin (PP)
|
Resin (PP)
|
|
Model No. | 633-C-AL | 633-C-SST | 633-CL-AL | 633-CL-SST | 633-E-AL | 633-E-SST | HC | 633-C-PP | 633-CL-PP | 633-E-PP | |
Hose model |
Inner
diameter (mm) Outer
diameter (mm) |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
TSISTMS-32 |
32.0
43.5
|
◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | - | - | - |
TSISTMS-38 |
38.1
50.5
|
◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ |
TSISTMS-50 |
50.8
64.5
|
◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ |
