・TOYOSILICONE THERMO HOSE

For heat resistant / temperature water

Model | TSITH

Features

Pressure-resistant hose with excellent heat resistance
Long-lasting
Safe

Download materials

Product features

Pressure-resistant hose with excellent heat resistance

Can be used for high-temperature fluids up to 120°C and hot water below 100°C. Suitable for piping of temperature controllers, etc.
They remain flexible even at -30°C and can be used as piping hoses for conveyance.

Pressure-resistant hose with excellent heat resistance

Can be used for high-temperature fluids up to 120°C and hot water below 100°C. Suitable for piping of temperature controllers, etc.
They remain flexible even at -30°C and can be used as piping hoses for conveyance.
Long-lasting

Their long service life reduces production problems due to hose hardening and deterioration caused by heat.

Long-lasting

Their long service life reduces production problems due to hose hardening and deterioration caused by heat.
Safe

Excellent pressure-resistant performance thanks to a special thread cast-off prevention structure that prevents coupling-related problems for enhanced safety.

Safe

Excellent pressure-resistant performance thanks to a special thread cast-off prevention structure that prevents coupling-related problems for enhanced safety.
Enables fluid conditions to be checked easily

Transparent, allowing you to confirm fluids for peace of mind

Click here to check the transparency of the hose with a video

Enables fluid conditions to be checked easily

Transparent, allowing you to confirm fluids for peace of mind

Click here to check the transparency of the hose with a video

Overview
Support /
Downloads
Compatible Couplings
Compatible KAMLOK

TOYOSILICONE THERMO HOSE

For heat resistant / temperature water

Application		Heat-resistant and temperature regulator hoses
Fluid		Water (non-potable) Air Animal/vegetable oil Heat-resistant Chemicals and cosmetics Powders Steam
Function		Positive pressure (pressure feed) Negative pressure (vacuum) High-pressure-resistant Heat-resistant Cold-resistant Transparent Flexible Kinking/collapse prevention Oil-resistant (animal/vegetable oil) Oil-resistant (mineral oil) Chemical-resistant Low odor Low elution Non-adhesive Antistatic Dew condensation prevention Abrasion-resistant Flame retardant Plasticizer-free Disposal sorting not required
Regulatory		RoHS 2 compliant
Specification	Main material	Silicone rubber
	Reinforcing material	Polyester thread
	Inner diameter	6.3mm~25.4mm
	Operating temperature range	-30℃~120℃
	Other	High water temp (under 100°C) / Steam (under 130°C for a short time) / Oils (animal and vegetable)(under 70°C)

Specifications table by size Operating temperature range -30℃ 〜 120℃

Model	Inner diameter × Outer diameter (mm)	Operating pressure (MPa)	Standard weight (kg/roll)	Standard length (m)	Minimum bending radius (mm)
TSITH-6	6.3 × 12.3	0~1.0	4.6	40	80
TSITH-9	9.5 × 16	0~1.0	6.4	40	100
TSITH-12	12.7 × 19.5	0~0.5	4.1	20	130
TSITH-15	15.9 × 24	0~0.5	6.2	20	150
TSITH-19	19 × 28	0~0.5	8.2	20	180
TSITH-25	25.4 × 35.5	0~0.5	11.8	20	220

Packing: Boxed　　　Coloring: Milky orange line added

Precautions

Warning
(1) Under no circumstances should these hoses be used for nonpolar organic solvents (such as benzene, toluene and hexane), halogenated hydrocarbons (such as methylene chloride or trichloroethane), concentrated strong acids, strong bases, mineral oil or steam. Also, do not use for animal or vegetable oil at temperatures exceeding 70℃. For steam cleaning, apply for a short time with a saturated steam pressure of less than 0.2 MPa at 120℃.

(2) Do not use for high temperature water at exceeding 100℃. Due to weakened reinforcement (thread), it can cause a hose puncture and secondary damage such as injury and burn.

(3) Note that silicone rubber has high gas permeability.Use caution when using this product with gases.Be sure to check “Precautions for Using Our Products Safely” before choosing a product.

Downloads

Support

Compatible Couplings

Hose details	Hose connection	Crimped	Crimped	Cap nut	Cap nut	Cap nut	Cap nut
	Coupling specifications	Male thread	Female thread	Ferrule	Male thread	Male thread	Ferrule
	Main material	Brass	Brass	Stainless steel	Stainless steel	Brass	Stainless steel

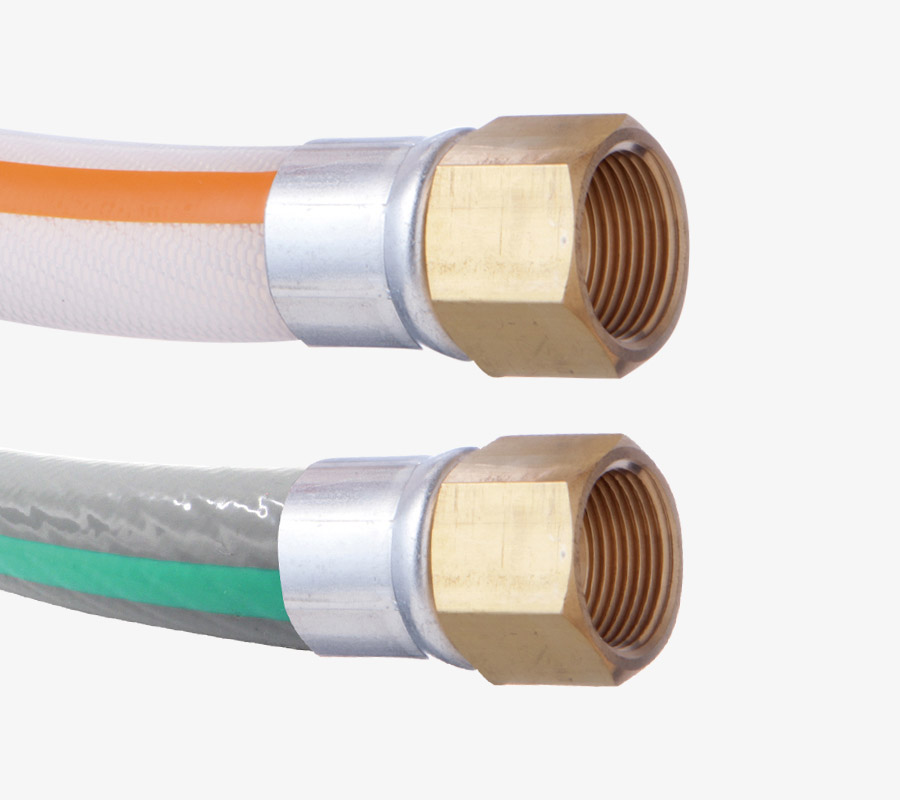

	Model No.	H01B	H04B	TC3-FS	TC3-SS	TC3-BS	TC3-FSG
Hose model	Inner diameter (mm) Outer diameter (mm)
TSITH-6	6.3 12.3	-	-	-	-	-	-
TSITH-9	9.5 16	◯	◯	◯	◯	◯	-
TSITH-12	12.7 19.5	◯	◯	◯	◯	-	-
TSITH-15	15.9 24	-	-	◯	◯	-	◯
TSITH-19	19 28	◯	◯	◯	◯	-	◯
TSITH-25	25.4 35.5	◯	◯	◯	◯	-	◯

Compatible KAMLOK

Hose details	Hose connection	Hose clamp tightening	Hose clamp tightening	Hose clamp tightening	Hose clamp tightening	Hose clamp tightening	Hose clamp tightening	Hose clamp tightening	Hose clamp tightening	Hose clamp tightening
	Coupling specifications	Coupler	Coupler	Coupler	Coupler	Coupler	Adapter	Adapter	Adapter	Coupler
	Main material	Aluminum alloy	Resin (PP)	Stainless steel	Aluminum alloy	Stainless steel	Stainless steel	Aluminum alloy	Resin (PP)	Resin (PP)
	Model No.	633-C-AL	633-C-PP	633-C-SST	633-CL-AL	633-CL-SST	633-E-SST	633-E-AL	633-E-PP	633-CL-PP
Hose model	Inner diameter (mm) Outer diameter (mm)
TSITH-6	6.3 12.3	-	-	-	-	-	-	-	-	-
TSITH-9	9.5 16	-	-	-	-	-	-	-	-	-
TSITH-12	12.7 19.5	-	-	-	-	-	-	-	-	-
TSITH-15	15.9 24	-	-	-	-	-	-	-	-	-
TSITH-19	19 28	◯	◯	◯	◯	◯	◯	◯	◯	-
TSITH-25	25.4 35.5	◯	◯	◯	◯	◯	◯	◯	◯	◯
