TOYOTOP-E HOSE

TOP
・
Search Products | Industrial Hoses
・TOYOTOP-E HOSE

anti-static

Model | TPE

Features

Retains its antistatic effects
Enables fluid conditions to be checked easily
Prevents static-related problems
Usable for vacuum applications

Download materials

Product features

Retains its antistatic effects

Long-lasting antistatic effect that prevents clogging with powder or granular materials and improves productivity

Retains its antistatic effects

Long-lasting antistatic effect that prevents clogging with powder or granular materials and improves productivity
Enables fluid conditions to be checked easily

Because fluids do not stick to the inner surface of the hose, it is easy to see inside the transparent hose for effective verification.

Click here to check the transparency of the hose with a video

Enables fluid conditions to be checked easily

Because fluids do not stick to the inner surface of the hose, it is easy to see inside the transparent hose for effective verification.

Click here to check the transparency of the hose with a video
Prevents static-related problems

Elimination of unpleasant static discharge to the human body for safety
Usable for suction and pressure feed applications

Prevents static-related problems

Elimination of unpleasant static discharge to the human body for safety
Usable for suction and pressure feed applications
Reduced time spent on work

Attaching a dedicated grounding clip eliminates tedious stripping work for improved workability.

Click here for grounding clip attachment instructions

Reduced time spent on work

Attaching a dedicated grounding clip eliminates tedious stripping work for improved workability.

Click here for grounding clip attachment instructions

Overview
Support /
Downloads
Case Studies
Compatible KAMLOK

TOYOTOP-E HOSE

anti-static

Application		For feeding powders for plastic molding equipment / Anti Static
Fluid		Powders Plastics powder and granular materials
Function		Positive pressure (pressure feed) Negative pressure (vacuum) High-pressure-resistant Heat-resistant Cold-resistant Transparent Flexible Kinking/collapse prevention Oil-resistant (animal/vegetable oil) Oil-resistant (mineral oil) Chemical-resistant Low odor Low elution Non-adhesive Antistatic Dew condensation prevention Abrasion-resistant Flame retardant Plasticizer-free Disposal sorting not required
Regulatory		RoHS 2 compliant
Specification	Main material	Soft PVC
	Reinforcing material	Rigid PVC
	Inner diameter	32mm~63.5mm
	Operating temperature range	-10℃~50℃
	Other

Specifications table by size Operating temperature range -10℃ 〜 50℃

Model	Inner diameter × Outer diameter (mm)	Operating pressure (MPa)	Standard weight (kg/roll)	Standard length (m)	Minimum bending radius (mm)
TPE032-20	32 × 41.6	-0.1~0.15	7.4	20	100
TPE038-20	38 × 48.4	-0.1~0.15	9.6	20	120
TPE050-20	50.8 × 63	-0.1~0.1	16.0	20	200
TPE065-20	63.5 × 78.9	-0.1~0.1	25.0	20	260

Packing: film packing　　　
*Depressurization deformation temperature is the temperature at which the hose deforms when its interior (in a straight condition) is depressurized to -0.1 MPa (-760 mmHg). It is not the hose's use limit temperature. *-0.1 MPa is an approximate value. The product may not be used for some applications. See "Vacuum Pressure Reference Region".

TOYOTOP-E grounding clip (made specifically for the TOYOTOP-E HOSE)

	Part Number	Applicable hose	Packing unit （pc）
*This is not a hose clamp.	TPEC-032	TPE032-20	10
	TPEC-038	TPE038-20
	TPEC-050	TPE050-20
	TPEC-065	TPE065-20

Here for attachment instructions.

Precautions

* TOYOTOP-E Hose should be used with dedicated ground clips to effectively prevent static electricity over long periods.

Downloads

Support

Compatible KAMLOK

Hose details	Hose connection	Hose clamp tightening	Hose clamp tightening	Hose clamp tightening	Hose clamp tightening	Hose clamp tightening	Hose clamp tightening
	Coupling specifications	Coupler	Coupler	Coupler	Coupler	Adapter	Adapter
	Main material	Aluminum alloy	Stainless steel	Aluminum alloy	Stainless steel	Aluminum alloy	Stainless steel

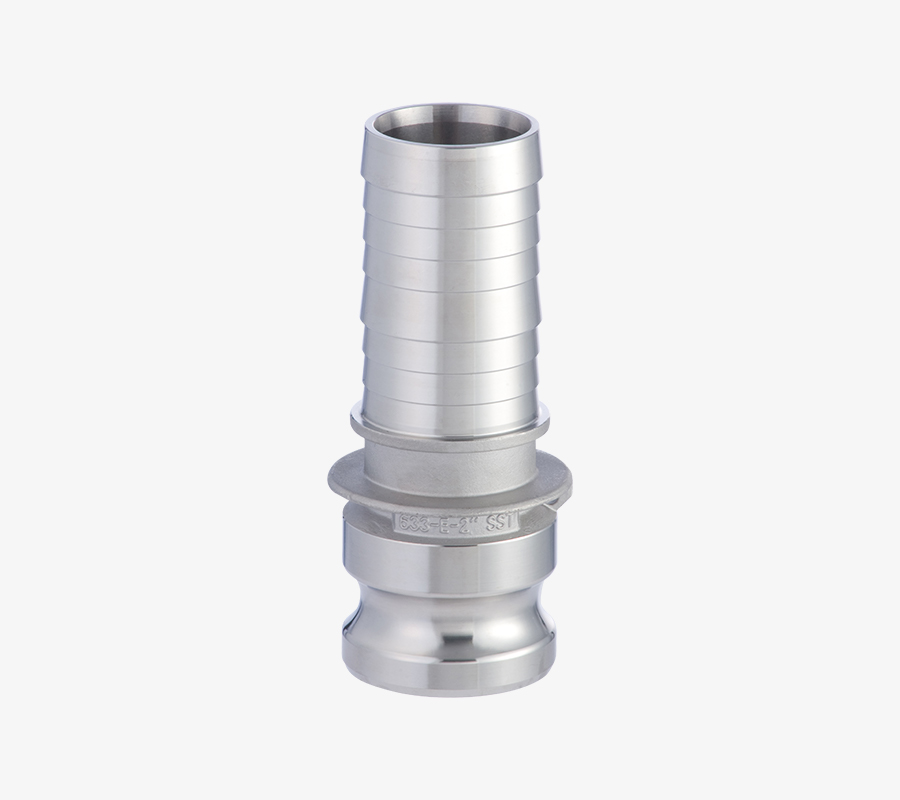

	Model No.	633-C-AL	633-C-SST	633-CL-AL	633-CL-SST	633-E-AL	633-E-SST
Hose model	Inner diameter (mm) Outer diameter (mm)
TPE032-20	32 41.6	◯	◯	◯	◯	◯	◯
TPE038-20	38 48.4	◯	◯	◯	◯	◯	◯
TPE050-20	50.8 63	◯	◯	◯	◯	◯	◯
TPE065-20	63.5 78.9	◯	◯	◯	◯	◯	◯
