Globalheat-resistant, wear-resistant, anti-static
TOYOTOP-E100°C HOSE
Model | TPE100C
Features
-
Prevents hose kinking or collapsing caused by high temperatures
-
Prevents perforation due to wear and foreign substance contamination
-
Prevents static-related problems
-
Usable for vacuum applications

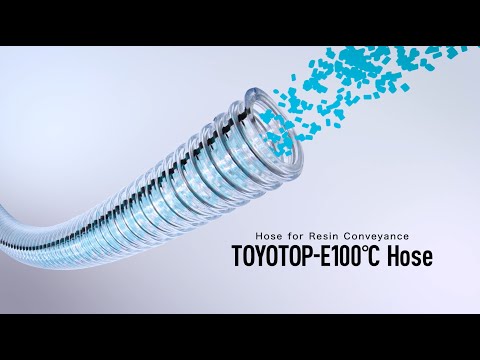

Related video
Download materials
Product features
-
Prevents hose kinking or collapsing caused by high temperatures
With heat resistance performance up to 100°C, these hoses can be used for conveying hot plastic pellets or suction and pressure feeds of engineering-plastic type powder and granular materials after predrying. Reinforced metal wire with excellent shape retention prevents hose kinking or collapse even at high temperatures, allowing for stable conveyance.
Prevents hose kinking or collapsing caused by high temperatures
With heat resistance performance up to 100°C, these hoses can be used for conveying hot plastic pellets or suction and pressure feeds of engineering-plastic type powder and granular materials after predrying. Reinforced metal wire with excellent shape retention prevents hose kinking or collapse even at high temperatures, allowing for stable conveyance.
-
Prevents perforation due to wear and foreign substance contamination
Abrasion-resistant specialized urethane resin is used for the inner surface of the hose. Three times more durable than conventional products * Toyox product comparison
Prevents perforation due to wear and foreign substance contamination
Abrasion-resistant specialized urethane resin is used for the inner surface of the hose. Three times more durable than conventional products * Toyox product comparison
-
Prevents static-related problems
The structure integrates a metal wire that accumulates static electricity and an antistatic band with a grounding function to provide excellent antistatic effects. Prevents conveyance issues such as uneven color due to raw material adhesion
Prevents static-related problems
The structure integrates a metal wire that accumulates static electricity and an antistatic band with a grounding function to provide excellent antistatic effects. Prevents conveyance issues such as uneven color due to raw material adhesion
-
Preventing production trouble due to foreign substance contamination
Plastic powder is less likely to accumulate inside the hose as it is smooth and seamless. Prevents grounding thread (lead wire) contamination, as grounding threads (lead wires) are not used on the hose exterior. * Toyox product comparison
Preventing production trouble due to foreign substance contamination
Plastic powder is less likely to accumulate inside the hose as it is smooth and seamless. Prevents grounding thread (lead wire) contamination, as grounding threads (lead wires) are not used on the hose exterior. * Toyox product comparison
TOYOTOP-E100°C HOSE
heat-resistant, wear-resistant, anti-static
| Application | Engineering plastic type powder and granular materials (for high-temperature transport in drying equipment, etc.) | |
|---|---|---|
| Fluid | ||
| Function |
Positive pressure (pressure feed) Negative pressure (vacuum) High-pressure-resistant Heat-resistant Cold-resistant Transparent Flexible Kinking/collapse prevention Oil-resistant (animal/vegetable oil) Oil-resistant (mineral oil) Chemical-resistant Low odor Low elution Non-adhesive Antistatic Dew condensation prevention Abrasion-resistant Flame retardant Plasticizer-free Disposal sorting not required |
|
| Regulatory | RoHS 2 compliant | |
| Specification | Main material | Special polyurethane resin |
| Reinforcing material | Hard steel wire | |
| Inner diameter | 32mm~76.2mm | |
| Operating temperature range | -5℃~100℃ | |
| Other | ||
Specifications table by size Operating temperature range -5℃ 〜 100℃
| Model | Inner diameter × Outer diameter (mm) | Operating pressure (MPa) | Standard weight (kg/roll) | Standard length (m) | Minimum bending radius (mm) | |
|---|---|---|---|---|---|---|
| 50°C | 100°C | |||||
| TPE100C-32 | 32 × 44.6 | -0.1~0.2 | -0.03~0.1 | 15.1 | 20 | 260 |
| TPE100C-38 | 38 × 50.6 | -0.1~0.2 | -0.03~0.1 | 17.6 | 20 | 300 |
| TPE100C-50 | 50.8 × 64.5 | -0.1~0.2 | -0.03~0.1 | 26.1 | 20 | 400 |
| TPE100C-63 | 63.5 × 80.7 | -0.05~0.1 | -0.03~0.05 | 36.7 | 20 | 500 |
| TPE100C-75 | 76.2 × 93.6 | -0.05~0.1 | -0.03~0.05 | 45.3 | 20 | 600 |
Packing: film packing Coloring: natural transparent
*-0.1 MPa is an approximate value. The product may not be used for some applications. See "Vacuum Pressure Reference Region".
Grounding clip (TFE/TPE100C)
| Part Number | Applicable hose | Packing unit （pc） | |
|---|---|---|---|
 * This is not a hose clamp. |
TFEC-32 | TPE100C-32 | 10 |
| TFEC-38 | TPE100C-38 | ||
| TFEC-50 | TPE100C-50 | ||
| TFEC-63 | TPE100C-63 | 50 | |
| TFEC-75 | TPE100C-75 |
Click here for attachment instructions.
Related links
Precautions
* Do not use with fluids other than plastic powder and granular materials
* For efficient long-term anti-static effects, use the dedicated grounding clip
* After attaching the clip, check the continuity with a tester or similar device that has a measurement range of at least ×10K.
-
Factory equipment piping
Reduced hose degradation and improved production by increasing heat resistance, and increased efficiency by reducing how frequently parts need to be replaced
- Improved workability
- Reduced maintenance
- Improved production efficiency
-
Plastic molding workplaces
Heat leads to hose collapse, preventing stable supply of raw materials
- Reduced production problems
- Foreign substance contamination measures
- Antistatic measures
-
Plastic molding workplaces
The improved anti-static design shortens cleaning times for greater work efficiency
- Reduced time spent on work
- Reduced production problems
- Antistatic measures
-
Plastic molding workplaces
Friction opens up holes in the hose, preventing stable supply of raw materials
- Reduced production problems
- Improved production efficiency
- Antistatic measures
-
Plastic molding workplaces
Improved wear resistance prevents holes from forming and foreign matter from entering
- Reduced time spent on work
- Reduced production problems
- Reduced product loss
-
Plastic molding workplaces
Hose interior material wears away, causing holes and requiring frequent hose replacement
- Reduced maintenance
- Foreign substance contamination measures
- Improved production efficiency
-
Factory equipment piping
Improved wear resistance prevents holes from forming and foreign matter from entering
- Reduced maintenance
- Foreign substance contamination measures
- Reduced product loss
Compatible KAMLOK
| Hose details | Hose connection | Hose clamp tightening | Hose clamp tightening | Hose clamp tightening | Hose clamp tightening | Hose clamp tightening | Hose clamp tightening |
|---|---|---|---|---|---|---|---|
| Coupling specifications | Coupler | Coupler | Coupler | Coupler | Adapter | Adapter | |
| Main material |
Aluminum alloy
|
Stainless steel
|
Aluminum alloy
|
Stainless steel
|
Aluminum alloy
|
Stainless steel
|
|
| Model No. | 633-C-AL | 633-C-SST | 633-CL-AL | 633-CL-SST | 633-E-AL | 633-E-SST | |
| Hose model |
Inner
diameter (mm) Outer
diameter (mm) |
 |
 |
 |
 |
 |
 |
| TPE100C-32 |
32
44.6
|
◯ | ◯ | ◯ | ◯ | ◯ | ◯ |
| TPE100C-38 |
38
50.6
|
◯ | ◯ | ◯ | ◯ | ◯ | ◯ |
| TPE100C-50 |
50.8
64.5
|
◯ | ◯ | ◯ | ◯ | ◯ | ◯ |
| TPE100C-63 |
63.5
80.7
|
◯ | ◯ | ◯ | ◯ | ◯ | ◯ |
| TPE100C-75 |
76.2
93.6
|
◯ | ◯ | ◯ | ◯ | ◯ | ◯ |
