Couplings for plant facility piping or built into machinery
Features
Related video
Download materials
Featuring a locking function that prevents the cam arm from coming off accidentally.
Featuring a locking function that prevents the cam arm from coming off accidentally.
Made of plastic, it is lightweight, easy to attach and detach the coupling, and easy to move.
Made of plastic, it is lightweight, easy to attach and detach the coupling, and easy to move.
A cam arm type that enables couplings to be easily attached and detached, improving workability.
A cam arm type that enables couplings to be easily attached and detached, improving workability.
Excellent chemical resistance.
Excellent chemical resistance.
Couplings for plant facility piping or built into machinery
Model No. | 633-BBL-PP | |
---|---|---|
Main material | ||
Function | ||
Fluid | Water (non-potable) Air Oil Food and beverage Chemicals and cosmetics Solvents and paints | |
Legal compliance | RoHS 2 compliant | |
Material details | Coupling body | PP |
Cam arm | SCS14 (SUS316 equivalent) | |
Pin, Ring | SUS304 | |
Arm fixing part | SUS304 | |
Gasket | Buna-N (NBR) *Gasket can be selected according to fluid. |

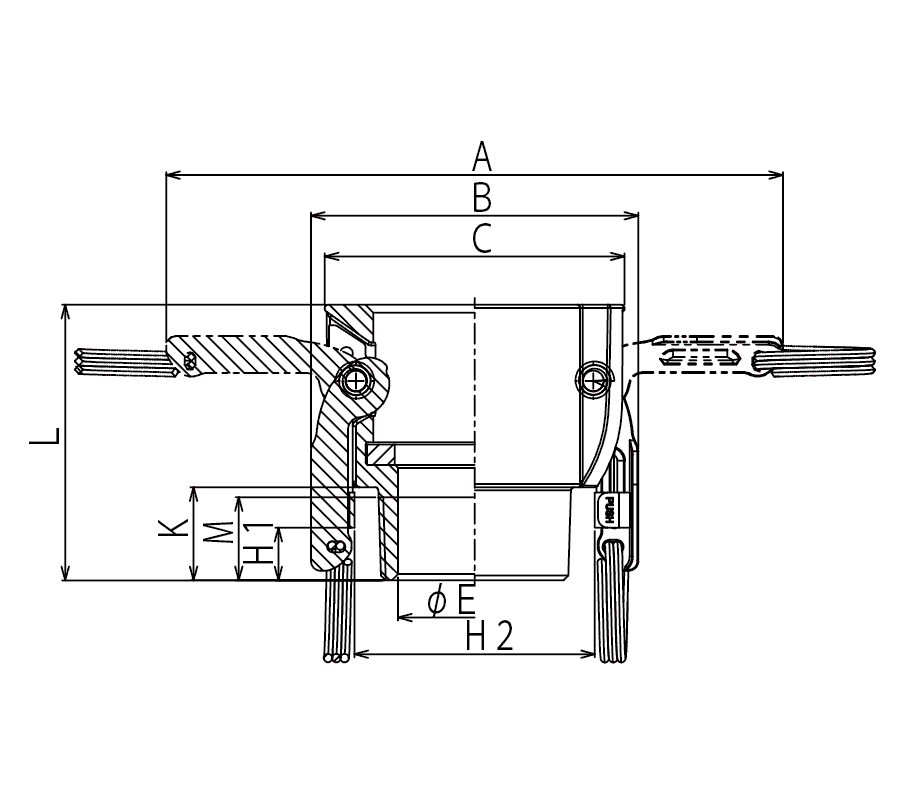

Model | Thread standard | Dimensions (mm) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
K | L | A | B | C | E | H1 | H2 | M | S | ||
633-BBL1PP | 1" | 25 | 71 | 139 | 76 | 64 | 24 | 46 | 25 | 22 | R1 |
633-BBL1-1/2PP | 1-1/2" | 25 | 77 | 181 | 93 | 68 | 38 | 66 | 15 | 21 | R1-1/2 |
633-BBL2PP | 2" | 29 | 86 | 190 | 103 | 78 | 48 | 75 | 12 | 25 | R2 |
* A Buna-N (NBR) gasket is used as standard. * Screws are JIS taper pipe threads.
*We recommend using couplers and adapters made of the same size and material when connecting fittings. Using couplers and adapters made of different materials may lead to corrosion (electrical corrosion).
