GlobalCouplings for plant facility piping or built into machinery
KAMLOK COUPLER Male Thread TWINLOK TYPE
- Model | 633-BBL-SST
- Material | Stainless steel
Features
-
Safe
-
Improved workability
-
Attaches and detaches easily
-
Corrosion-resistant
Related video
Download materials
Other material
Product features
-
Safe
Featuring a locking function that prevents the cam arm from coming off accidentally.
Safe
Featuring a locking function that prevents the cam arm from coming off accidentally.
-
Improved workability
Featuring a cam arm locking function for easy adapter insertion.
Improved workability
Featuring a cam arm locking function for easy adapter insertion.
-
Attaches and detaches easily
A cam arm type that enables couplings to be easily attached and detached, improving workability.
Attaches and detaches easily
A cam arm type that enables couplings to be easily attached and detached, improving workability.
-
Corrosion-resistant
Corrosion-resistant for a long service life. Excellent durability and minimal impact on fluids.
Corrosion-resistant
Corrosion-resistant for a long service life. Excellent durability and minimal impact on fluids.
KAMLOK COUPLER Male Thread
Couplings for plant facility piping or built into machinery
- KAMLOK
- Coupler
- Connection size
- 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4
- Device side
- Male thread
- Connection size
- R1/2, R3/4, R1, R1-1/4, R1-1/2, R2, R2-1/2, R3, R4
| Model No. | 633-BBL-SST | |
|---|---|---|
| Main material | ||
| Function | ||
| Fluid | Water (non-potable) Air Oil Food and beverage Chemicals and cosmetics Solvents and paints | |
| Legal compliance | RoHS 2 compliant | |
| Material details | Coupling body | SCS14 (SUS316 equivalent) |
| Cam arm | SCS14 (SUS316 equivalent) | |
| Arm fixing part | SUS304 | |
| Pin, Ring | SUS304 | |
| Gasket | Buna-N (NBR) *Gasket can be selected according to fluid. | |

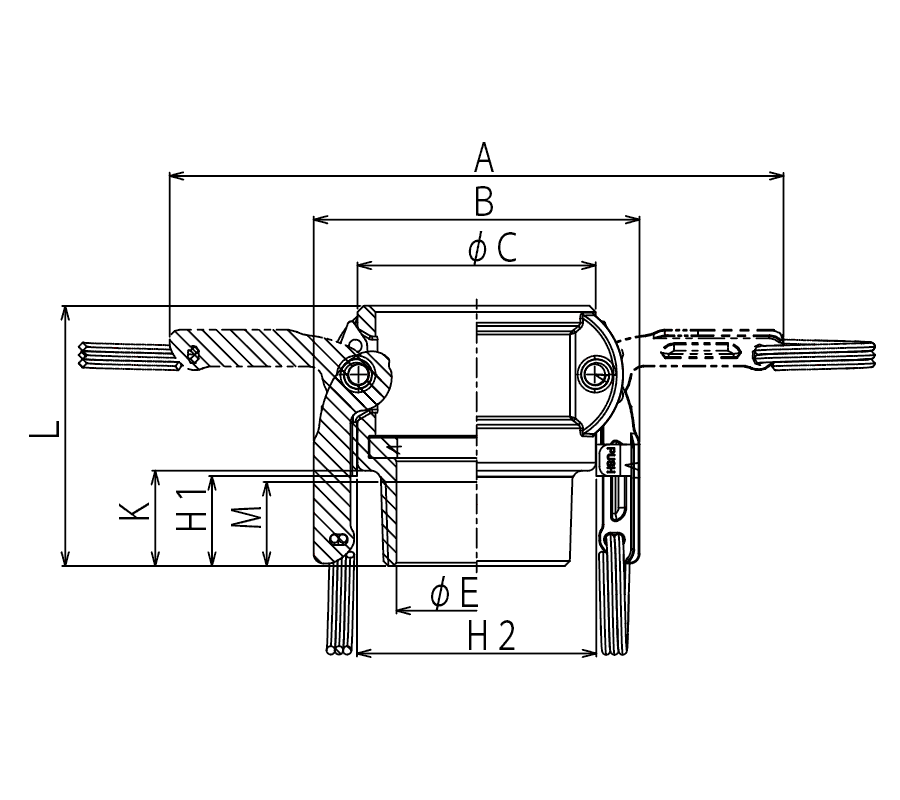

KAMLOK specifications
| Model | Thread standard | Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| K | L | A | B | C | E | H1 | H2 | M | S | ||
| 633-BBL1/2SST | 1/2" | 18 | 50 | 112 | 66 | 41 | 14 | 41 | 30 | 14 | R1/2 |
| 633-BBL3/4SST | 3/4" | 20 | 50 | 12 | 66 | 41 | 19 | 41 | 30 | 16 | R3/4 |
| 633-BBL1SST | 1" | 23 | 64 | 139 | 76 | 47 | 25 | 46 | 30 | 18 | R1 |
| 633-BBL1-1/4SST | 1-1/4" | 26 | 73 | 176 | 85 | 58 | 32 | 58 | 20 | 21 | R1-1/4 |
| 633-BBL1-1/2SST | 1-1/2" | 26 | 73 | 184 | 93 | 65 | 38 | 66 | 15 | 21 | R1-1/2 |
| 633-BBL2SST | 2" | 30 | 82 | 193 | 103 | 75 | 49 | 75 | 12 | 25 | R2 |
| 633-BBL2-1/2SST | 2-1/2" | 34 | 89 | 205 | 125 | 90 | 61 | 93 | 9 | 29 | R2-1/2 |
| 633-BBL3SST | 3" | 36 | 95 | 248 | 141 | 108 | 76 | 112 | 6 | 31 | R3 |
| 633-BBL4SST | 4" | 40 | 102 | 277 | 169 | 140 | 94 | 140 | 4 | 37 | R4 |
* The 1/2" coupler can also be connected to a 3/4" adapter. * The 3/4" coupler can also be connected to a 1/2" adapter. * A Buna-N (NBR) gasket is used as standard. * Screws are JIS taper pipe threads.
Related links
Precautions
*We recommend using couplers and adapters made of the same size and material when connecting fittings. Using couplers and adapters made of different materials may lead to corrosion (electrical corrosion).
