KAMLOK COUPLER Female Thread TWINLOK TYPE
- Model | 633-BBL-AL
- Material | Aluminum alloy
Features
-
Safe
-
Improved workability
-
Attaches and detaches easily
Related video
Download materials
Product features
-
Safe
Featuring a locking function that prevents the cam arm from coming off accidentally.
Safe
Featuring a locking function that prevents the cam arm from coming off accidentally.
-
Improved workability
Featuring a cam arm locking function for easy adapter insertion.
Improved workability
Featuring a cam arm locking function for easy adapter insertion.
-
Attaches and detaches easily
A cam arm type that enables couplings to be easily attached and detached, improving workability.
Attaches and detaches easily
A cam arm type that enables couplings to be easily attached and detached, improving workability.
KAMLOK COUPLER Female Thread
Couplings for plant facility piping or built into machinery
- KAMLOK
- Coupler
- Connection size
- 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4
- Device side
- Male thread
- Connection size
- R1/2, R3/4, R1, R1-1/4, R1-1/2, R2, R2-1/2, R3, R4
| Model No. | 633-BBL-AL | |
|---|---|---|
| Main material | ||
| Function | ||
| Fluid | Water (non-potable) Air Oil | |
| Legal compliance | RoHS 2 compliant | |
| Material details | Coupling body | Aluminum alloy (ADC12) |
| Cam arm | SCS14 (SUS316 equivalent) | |
| Arm fixing part | SUS304 | |
| Pin, Ring | SUS304 | |
| Gasket | Buna-N (NBR) *Gasket can be selected according to fluid. | |

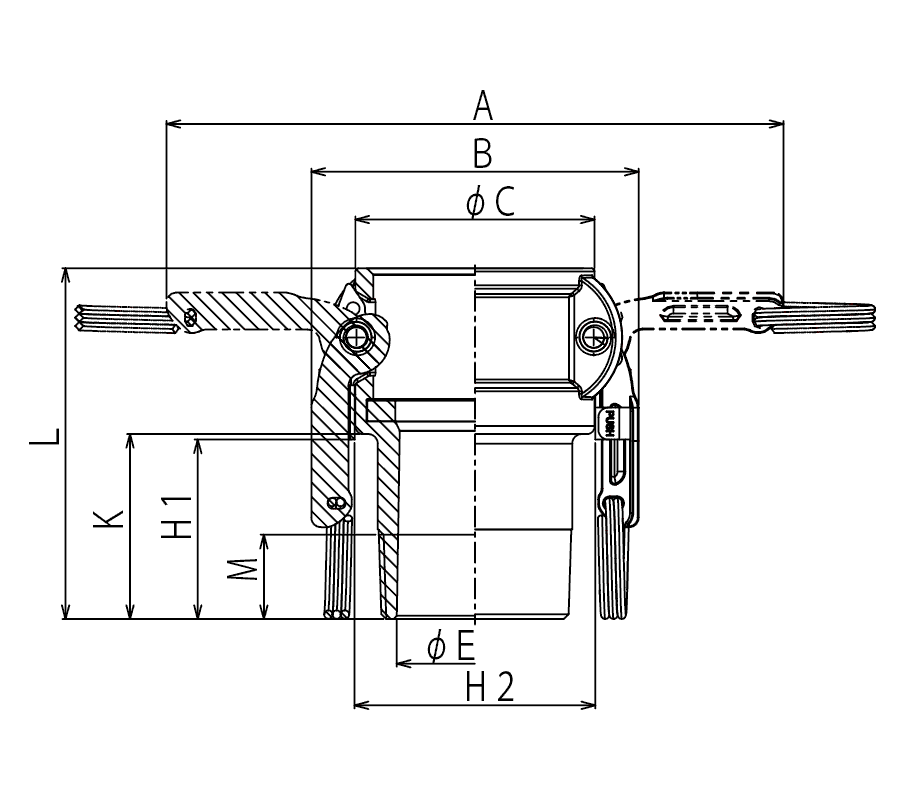

KAMLOK specifications
| Model | Thread standard | Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| K | L | A | B | C | E | H1 | H2 | M | S | ||
| 633-BBL1/2AL | 1/2" | 30 | 62 | 112 | 66 | 41 | 15 | 41 | 30 | 14 | R1/2 |
| 633-BBL3/4AL | 3/4" | 32 | 64 | 112 | 66 | 41 | 20 | 41 | 30 | 16 | R3/4 |
| 633-BBL1AL | 1" | 35 | 76 | 139 | 76 | 47 | 25 | 46 | 30 | 18 | R1 |
| 633-BBL1-1/4AL | 1-1/4" | 58 | 105 | 176 | 85 | 58 | 33 | 58 | 20 | 21 | R1-1/4 |
| 633-BBL1-1/2AL | 1-1/2" | 58 | 105 | 184 | 93 | 65 | 40 | 66 | 15 | 21 | R1-1/2 |
| 633-BBL2AL | 2" | 58 | 110 | 193 | 103 | 75 | 49 | 75 | 12 | 25 | R2 |
| 633-BBL2-1/2AL | 2-1/2" | 63 | 118 | 205 | 125 | 90 | 63 | 93 | 9 | 29 | R2-1/2 |
| 633-BBL3AL | 3" | 77 | 136 | 248 | 141 | 108 | 76 | 112 | 6 | 31 | R3 |
| 633-BBL4AL | 4" | 42 | 102 | 277 | 169 | 140 | 95 | 140 | 4 | 37 | R4 |
* The 1/2" coupler can also be connected to a 3/4" adapter. * The 3/4" coupler can also be connected to a 1/2" adapter. * A Buna-N (NBR) gasket is used as standard. * Screws are JIS taper pipe threads.
Related links
Precautions
*We recommend using couplers and adapters made of the same size and material when connecting fittings. Using couplers and adapters made of different materials may lead to corrosion (electrical corrosion).
