Couplings for plant facility piping or built into machinery
Features
Download materials
A cam arm type that enables couplings to be easily attached and detached, improving workability.
A cam arm type that enables couplings to be easily attached and detached, improving workability.
Made of plastic, it is lightweight, easy to attach and detach the coupling, and easy to move.
Made of plastic, it is lightweight, easy to attach and detach the coupling, and easy to move.
Excellent chemical resistance.
Excellent chemical resistance.
The twin-cam structure is vibration-resistant, preventing the cam arm from coming off for safe operation.
The twin-cam structure is vibration-resistant, preventing the cam arm from coming off for safe operation.
Couplings for plant facility piping or built into machinery
Model No. | 633-BB-PP | |
---|---|---|
Main material | ||
Function | ||
Fluid | Water (non-potable) Air Oil Food and beverage Chemicals and cosmetics Solvents and paints | |
Legal compliance | RoHS 2 compliant | |
Material details | Coupling body | PP |
Cam arm | SCS14 (SUS316 equivalent) | |
Pin, Ring | SUS304 | |
Gasket | Buna-N (NBR) *Gasket can be selected according to fluid. |

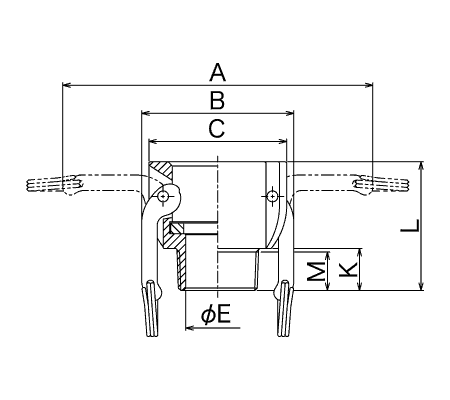

Model | Thread standard | Dimensions (mm) | |||||||
---|---|---|---|---|---|---|---|---|---|
A | B | C | E | K | L | M | S | ||
633-BB3/4PP | 3/4" | 109 | 61 | 57 | 19 | 23 | 58 | 19 | R3/4 |
633-BB1PP | 1" | 130 | 67 | 64 | 24 | 25 | 71 | 22 | R1 |
633-BB1-1/2PP | 1-1/2" | 187 | 87 | 82 | 38 | 25 | 77 | 21 | R1-1/2 |
633-BB2PP | 2" | 196 | 96 | 94 | 48 | 29 | 86 | 25 | R2 |
633-BB3PP | 3" | 249 | 137 | 130 | 72 | 35 | 96 | 31 | R3 |
* A Buna-N (NBR) gasket is used as standard. * Screws are JIS taper pipe threads.
*We recommend using couplers and adapters made of the same size and material when connecting fittings. Using couplers and adapters made of different materials may lead to corrosion (electrical corrosion).
