KAMLOK COUPLER Male Thread
- Model | 633-BB-AL
- Material | Aluminum alloy
Features
-
Attaches and detaches easily
-
Safe
Download materials
Product features
-
Attaches and detaches easily
A cam arm type that enables couplings to be easily attached and detached, improving workability.
Attaches and detaches easily
A cam arm type that enables couplings to be easily attached and detached, improving workability.
-
Vibration-resistant for peace of mind
The twin-cam structure is vibration-resistant, preventing the cam arm from coming off for safe operation.
Vibration-resistant for peace of mind
The twin-cam structure is vibration-resistant, preventing the cam arm from coming off for safe operation.
KAMLOK COUPLER Male Thread
Couplings for plant facility piping or built into machinery
- KAMLOK
- Coupler
- Connection size
- 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4, 5, 6
- Device side
- Male thread
- Connection size
- R1/2, R3/4, R1, R1-1/4, R1-1/2, R2, R2-1/2, R3, R4, R5, R6
| Model No. | 633-BB-AL | |
|---|---|---|
| Main material | ||
| Function | ||
| Fluid | Water (non-potable) Air Oil | |
| Legal compliance | RoHS 2 compliant | |
| Material details | Coupling body | Aluminum alloy (ADC12, 5"~ AC4CH) |
| Cam arm | SCS14 (SUS316 equivalent) | |
| Pin, Ring | SUS304 | |
| Gasket | Buna-N (NBR) *Gasket can be selected according to fluid. | |

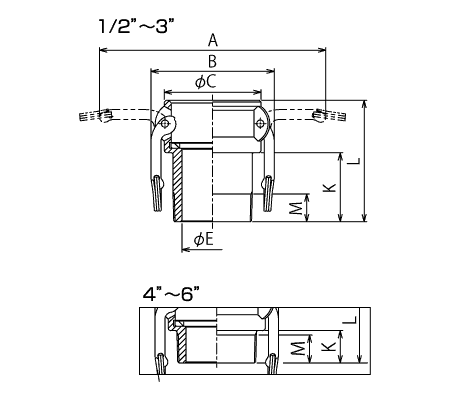

KAMLOK specifications
| Model | Thread standard | Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | E | K | L | M | S | ||
| 633-BB1/2AL | 1/2" | 109 | 61 | 41 | 15 | 30 | 62 | 14 | R1/2 |
| 633-BB3/4AL | 3/4" | 109 | 61 | 41 | 20 | 32 | 64 | 16 | R3/4 |
| 633-BB1AL | 1" | 130 | 67 | 47 | 25 | 35 | 76 | 18 | R1 |
| 633-BB1-1/4AL | 1-1/4" | 179 | 79 | 58 | 33 | 58 | 105 | 21 | R1-1/4 |
| 633-BB1-1/2AL | 1-1/2" | 187 | 87 | 65 | 40 | 58 | 105 | 21 | R1-1/2 |
| 633-BB2AL | 2" | 196 | 96 | 75 | 49 | 58 | 110 | 25 | R2 |
| 633-BB2-1/2AL | 2-1/2" | 208 | 108 | 90 | 63 | 63 | 118 | 29 | R2-1/2 |
| 633-BB3AL | 3" | 249 | 137 | 108 | 76 | 77 | 136 | 31 | R3 |
| 633-BB4AL | 4" | 277 | 166 | 140 | 95 | 42 | 102 | 37 | R4 |
| 633-BB5AL | 5" | 302 | 191 | 165 | 124 | 45 | 105 | 39 | R5 |
| 633-BB6AL | 6" | 409 | 255 | 198 | 149 | 43 | 116 | 37 | R6 |
* The 1/2" coupler can also be connected to a 3/4" adapter. * The 3/4" coupler can also be connected to a 1/2" adapter. * Die-casting used for 4" and smaller products. * The barb fitting shape may vary depending on the size. * A Buna-N (NBR) gasket is used as standard. * Screws are JIS taper pipe threads.
Related links
Precautions
*We recommend using couplers and adapters made of the same size and material when connecting fittings. Using couplers and adapters made of different materials may lead to corrosion (electrical corrosion).
