GlobalCouplings for plant facility piping or built into machinery
KAMLOK COUPLER Female Thread
- Model | 633-DB-PP
- Material | Resin (PP)
Features
-
Attaches and detaches easily
-
Lightweight for improved workability
-
Superb chemical resistance
-
Safe
Download materials
Other material
Product features
-
Attaches and detaches easily
A cam arm type that enables couplings to be easily attached and detached, improving workability.
Attaches and detaches easily
A cam arm type that enables couplings to be easily attached and detached, improving workability.
-
Lightweight for improved workability
Made of plastic, it is lightweight, easy to attach and detach the coupling, and easy to move.
Lightweight for improved workability
Made of plastic, it is lightweight, easy to attach and detach the coupling, and easy to move.
-
Chemical resistance
Excellent chemical resistance.
Chemical resistance
Excellent chemical resistance.
-
Vibration-resistant for peace of mind
The twin-cam structure is vibration-resistant, preventing the cam arm from coming off for safe operation.
Vibration-resistant for peace of mind
The twin-cam structure is vibration-resistant, preventing the cam arm from coming off for safe operation.
KAMLOK COUPLER Female Thread
Couplings for plant facility piping or built into machinery
- KAMLOK
- Coupler
- Connection size
- 3/4, 1, 1-1/2, 2, 3
- Device side
- Female thread
- Connection size
- Rc3/4, Rc1, Rc1-1/2, Rc2, Rc3
| Model No. | 633-DB-PP | |
|---|---|---|
| Main material | ||
| Function | ||
| Fluid | Water (non-potable) Air Oil Food and beverage Chemicals and cosmetics Solvents and paints | |
| Legal compliance | RoHS 2 compliant | |
| Material details | Coupling body | PP |
| Cam arm | SCS14 (SUS316 equivalent) | |
| Pin, Ring | SUS304 | |
| Gasket | Buna-N (NBR) *Gasket can be selected according to fluid. | |

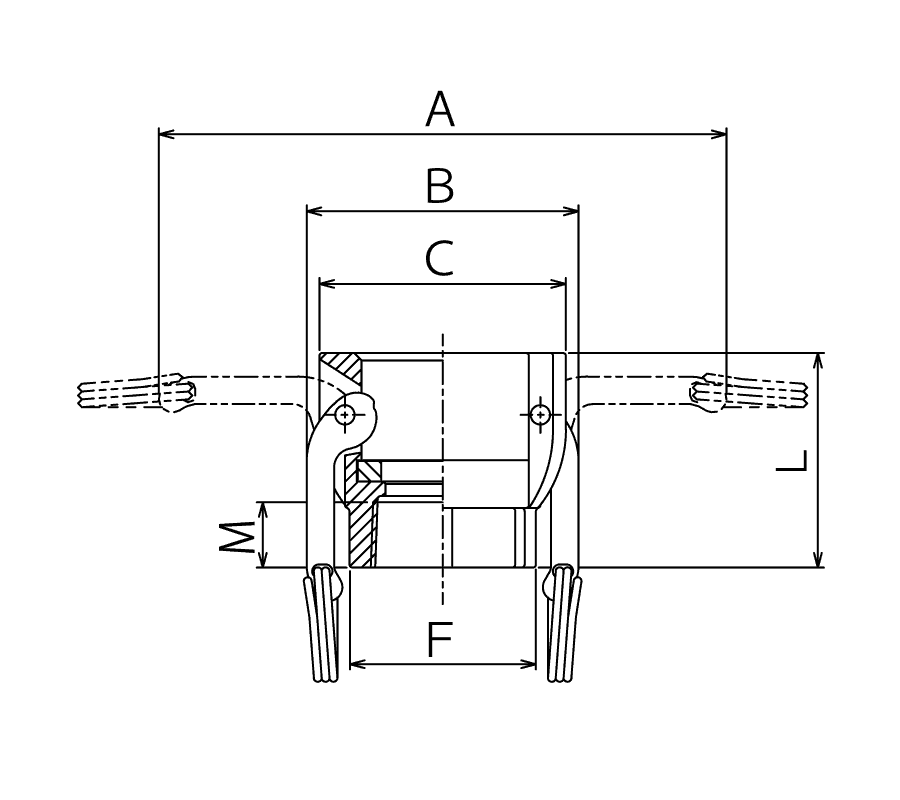

KAMLOK specifications
| Model | Thread standard | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | F | L | M | S | ||
| 633-DB3/4PP | 3/4" | 109 | 61 | 57 | 41 | 57 | 19 | Rc3/4 |
| 633-DB1PP | 1" | 130 | 67 | 64 | 51 | 66 | 20 | Rc1 |
| 633-DB1-1/2PP | 1-1/2" | 187 | 87 | 82 | 68 | 71 | 22 | Rc1-1/2 |
| 633-DB2PP | 2" | 196 | 96 | 94 | 81 | 79 | 20 | Rc2 |
| 633-DB3PP | 3" | 249 | 137 | 130 | 108 | 94 | 32 | Rc3 |
* A Buna-N (NBR) gasket is used as standard. * Screws are JIS taper pipe threads.
Related links
Precautions
*We recommend using couplers and adapters made of the same size and material when connecting fittings. Using couplers and adapters made of different materials may lead to corrosion (electrical corrosion).
