GlobalCouplings for plant facility piping or built into machinery
KAMLOK COUPLER Female Thread
- Model | 633-DB-SST
- Material | Stainless steel
Features
-
Attaches and detaches easily
-
Corrosion-resistant
-
Safe
Download materials
Other material
Product features
-
Attaches and detaches easily
A cam arm type that enables couplings to be easily attached and detached, improving workability.
Attaches and detaches easily
A cam arm type that enables couplings to be easily attached and detached, improving workability.
-
Corrosion-resistant
Corrosion-resistant for a long service life. Excellent durability and minimal impact on fluids.
Corrosion-resistant
Corrosion-resistant for a long service life. Excellent durability and minimal impact on fluids.
-
Vibration-resistant for peace of mind
The twin-cam structure is vibration-resistant, preventing the cam arm from coming off for safe operation.
Vibration-resistant for peace of mind
The twin-cam structure is vibration-resistant, preventing the cam arm from coming off for safe operation.
KAMLOK COUPLER Female Thread
Couplings for plant facility piping or built into machinery
- KAMLOK
- Coupler
- Connection size
- 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4, 5, 6
- Device side
- Female thread
- Connection size
- Rc1/2, Rc3/4, Rc1, Rc1-1/4, Rc1-1/2, Rc2, Rc2-1/2, Rc3, Rc4, Rc5, Rc6
| Model No. | 633-DB-SST | |
|---|---|---|
| Main material | ||
| Function | ||
| Fluid | Water (non-potable) Air Oil Food and beverage Chemicals and cosmetics Solvents and paints | |
| Legal compliance | RoHS 2 compliant | |
| Material details | Coupling body | SCS14 (SUS316 equivalent) |
| Cam arm | SCS14 (SUS316 equivalent) | |
| Pin, Ring | SUS304 | |
| Gasket | Buna-N (NBR) *Gasket can be selected according to fluid. | |

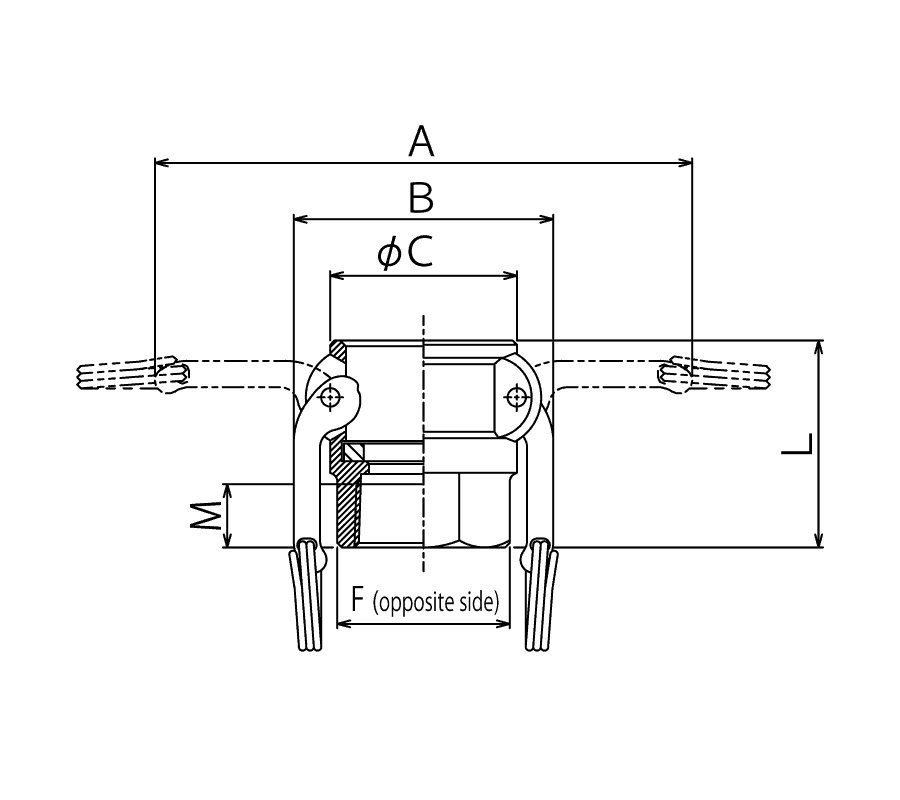

KAMLOK specifications
| Model | Thread standard | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | F | L | M | S | ||
| 633-DB1/2SST | 1/2" | 109 | 61 | 41 | 32 | 51 | 15 | Rc1/2 |
| 633-DB3/4SST | 3/4" | 109 | 61 | 41 | 32 | 51 | 15 | Rc3/4 |
| 633-DB1SST | 1" | 130 | 67 | 47 | 41 | 62 | 18 | Rc1 |
| 633-DB1-1/4SST | 1-1/4" | 179 | 79 | 58 | 48 | 69 | 19 | Rc1-1/4 |
| 633-DB1-1/2SST | 1-1/2" | 187 | 87 | 65 | 59 | 72 | 21 | Rc1-1/2 |
| 633-DB2SST | 2" | 196 | 96 | 75 | 69 | 78 | 23 | Rc2 |
| 633-DB2-1/2SST | 2-1/2" | 208 | 108 | 90 | 83 | 89 | 29 | Rc2-1/2 |
| 633-DB3SST | 3" | 249 | 137 | 108 | 99 | 91 | 29 | Rc3 |
| 633-DB4SST | 4" | 277 | 166 | 140 | 130 | 95 | 33 | Rc4 |
| 633-DB5SST | 5" | 302 | 191 | 165 | 152 | 103 | 41 | Rc5 |
| 633-DB6SST | 6" | 409 | 255 | 198 | 196 | 114 | 41 | Rc6 |
* The 1/2" coupler can also be connected to a 3/4" adapter. * The 3/4" coupler can also be connected to a 1/2" adapter. * A Buna-N (NBR) gasket is used as standard. * Screws are JIS taper pipe threads.
Related links
Precautions
*We recommend using couplers and adapters made of the same size and material when connecting fittings. Using couplers and adapters made of different materials may lead to corrosion (electrical corrosion).
