GlobalCouplings for plant facility piping or built into machinery
KAMLOK COUPLER Female Thread TWINLOK TYPE
- Model | 633-DBL-PP
- Material | Resin (PP)
Features
-
Safe
-
Lightweight for improved workability
-
Attaches and detaches easily
-
Superb chemical resistance
Related video
Download materials
Other material
Product features
-
Safe
Featuring a locking function that prevents the cam arm from coming off accidentally.
Safe
Featuring a locking function that prevents the cam arm from coming off accidentally.
-
Lightweight for improved workability
Made of plastic, it is lightweight, easy to attach and detach the coupling, and easy to move.
Lightweight for improved workability
Made of plastic, it is lightweight, easy to attach and detach the coupling, and easy to move.
-
Attaches and detaches easily
A cam arm type that enables couplings to be easily attached and detached, improving workability.
Attaches and detaches easily
A cam arm type that enables couplings to be easily attached and detached, improving workability.
-
Chemical resistance
Excellent chemical resistance.
Chemical resistance
Excellent chemical resistance.
KAMLOK COUPLER Female Thread
Couplings for plant facility piping or built into machinery
- KAMLOK
- Coupler
- Connection size
- 1, 1-1/2, 2
- Device side
- Female thread
- Connection size
- Rc1, Rc1-1/2, Rc2
| Model No. | 633-DBL-PP | |
|---|---|---|
| Main material | ||
| Function | ||
| Fluid | Water (non-potable) Air Oil Food and beverage Chemicals and cosmetics Solvents and paints | |
| Legal compliance | RoHS 2 compliant | |
| Material details | Coupling body | PP |
| Cam arm | SCS14 (SUS316 equivalent) | |
| Pin, Ring | SUS304 | |
| Arm fixing part | SUS304 | |
| Gasket | Buna-N (NBR) *Gasket can be selected according to fluid. | |

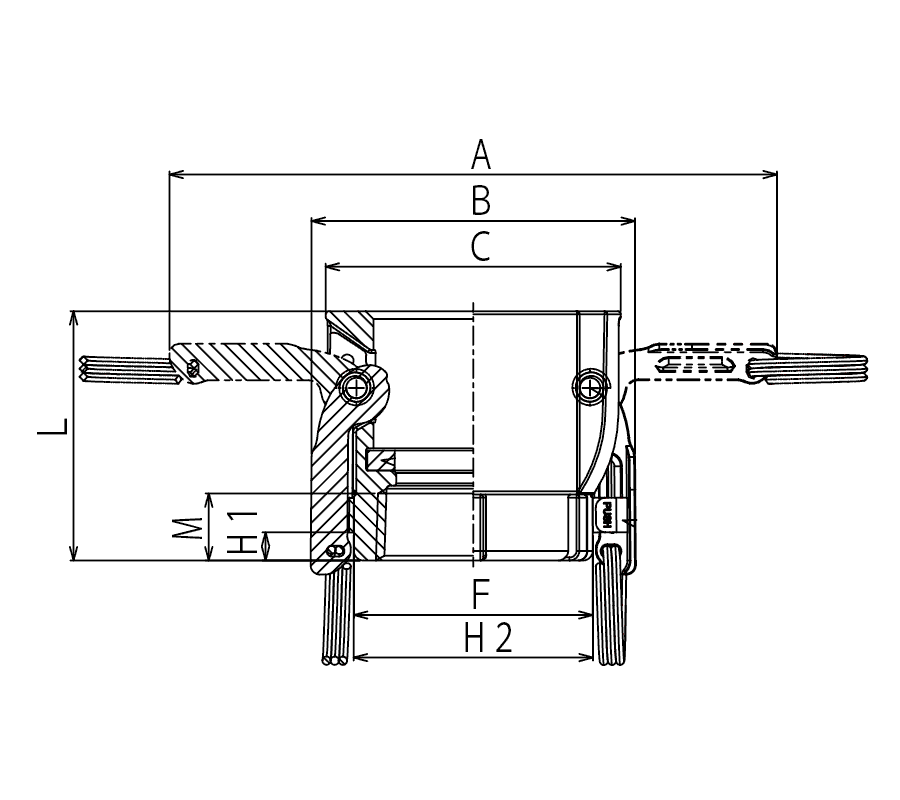

KAMLOK specifications
| Model | Thread standard | Dimensions (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | F | H1 | H2 | L | M | S | ||
| 633-DBL1PP | 1" | 139 | 76 | 64 | 51 | 9 | 46 | 66 | 20 | Rc1 |
| 633-DBL1-1/2PP | 1-1/2" | 181 | 93 | 82 | 68 | 4 | 66 | 71 | 22 | Rc1-1/2 |
| 633-DBL2PP | 2" | 190 | 103 | 94 | 81 | 9 | 76 | 79 | 20 | Rc2 |
* A Buna-N (NBR) gasket is used as standard. * Screws are JIS taper pipe threads.
Related links
Precautions
*We recommend using couplers and adapters made of the same size and material when connecting fittings. Using couplers and adapters made of different materials may lead to corrosion (electrical corrosion).
