KAMLOK COUPLER Female Thread TWINLOK TYPE
- Model | 633-DBL-AL
- Material | Aluminum alloy
Features
-
Safe
-
Improved workability
-
Attaches and detaches easily
Related video
Download materials
Product features
-
Safe
Featuring a locking function that prevents the cam arm from coming off accidentally.
Safe
Featuring a locking function that prevents the cam arm from coming off accidentally.
-
Improved workability
The arms can be temporarily fixed in the open position, making connection work that much easier.
Improved workability
The arms can be temporarily fixed in the open position, making connection work that much easier.
-
Attaches and detaches easily
Simply insert the adapter into the coupler and pull down the coupler cam arms. Operation completes in seconds.
Attaches and detaches easily
Simply insert the adapter into the coupler and pull down the coupler cam arms. Operation completes in seconds.
KAMLOK COUPLER Female Thread
Couplings for plant facility piping or built into machinery
- KAMLOK
- Coupler
- Connection size
- 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4
- Device side
- Female thread
- Connection size
- Rc1/2, Rc3/4, Rc1, Rc1-1/4, Rc1-1/2, Rc2, Rc2-1/2, Rc3, Rc4
| Model No. | 633-DBL-AL | |
|---|---|---|
| Main material | ||
| Function | ||
| Fluid | Water (non-potable) Air Oil | |
| Legal compliance | RoHS 2 compliant | |
| Material details | Coupling body | Aluminum alloy (ADC12) |
| Cam arm | SCS14 (SUS316 equivalent) | |
| Arm fixing part | SUS304 | |
| Pin, Ring | SUS304 | |
| Gasket | Buna-N (NBR) *Gasket can be selected according to fluid. | |
KAMLOK specifications

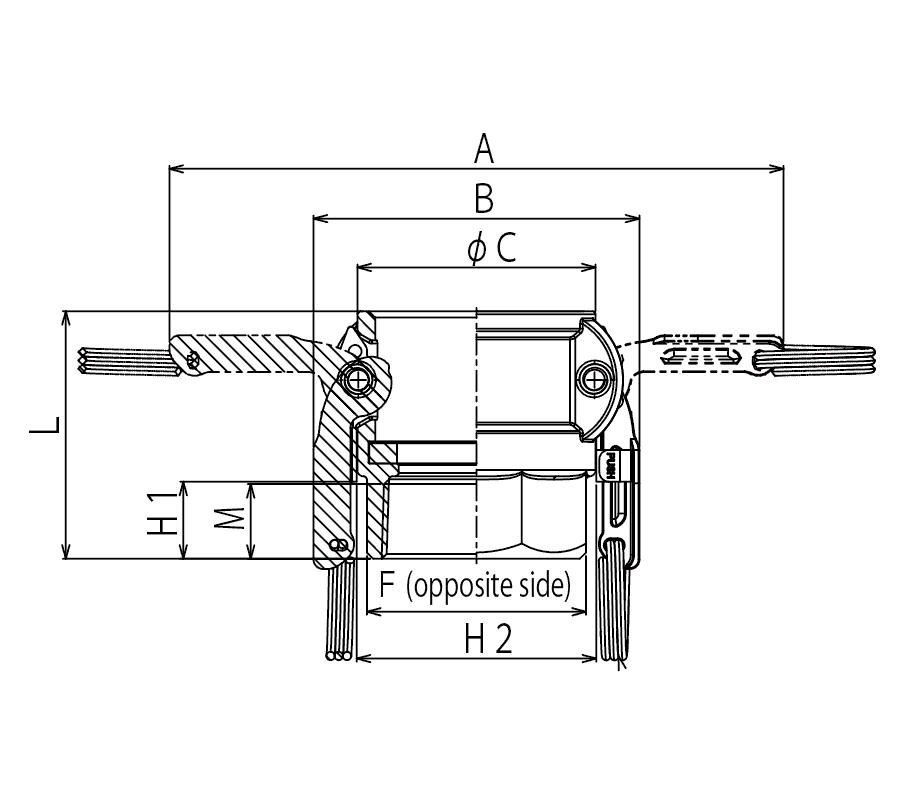

| Model | Thread standard | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | F | L | M | S | ||
| 633-DBL1/2AL | 1/2" | 112 | 66 | 41 | 32 | 51 | 15 | Rc1/2 |
| 633-DBL3/4AL | 3/4" | 112 | 66 | 41 | 35 | 51 | 15 | Rc3/4 |
| 633-DBL1AL | 1" | 139 | 76 | 47 | 41 | 62 | 18 | Rc1 |
| 633-DBL1-1/4AL | 1-1/4" | 176 | 85 | 58 | 50 | 69 | 19 | Rc1-1/4 |
| 633-DBL1-1/2AL | 1-1/2" | 184 | 93 | 65 | 59 | 72 | 22 | Rc1-1/2 |
| 633-DBL2AL | 2" | 193 | 103 | 75 | 69 | 78 | 23 | Rc2 |
| 633-DBL2-1/2AL | 2-1/2" | 205 | 125 | 90 | 84 | 89 | 29 | Rc2-1/2 |
| 633-DBL3AL | 3" | 248 | 141 | 108 | 99 | 91 | 30 | Rc3 |
| 633-DBL4AL | 4" | 277 | 169 | 140 | 129 | 98 | 36 | Rc4 |
* The 1/2" coupler can also be connected to a 3/4" adapter. * The 3/4" coupler can also be connected to a 1/2" adapter. * A Buna-N (NBR) gasket is used as standard. * Screws are JIS taper pipe threads.
Related links
Precautions
*We recommend using couplers and adapters made of the same size and material when connecting fittings. Using couplers and adapters made of different materials may lead to corrosion (electrical corrosion).
