GlobalCouplings for plant facility piping or built into machinery
KAMLOK ADAPTER Male Thread
- Model | 633-FB-PP
- Material | Resin (PP)
Features
-
Superb chemical resistance
-
Lightweight for improved workability
Download materials
Other material
Product features
-
Chemical resistance
Excellent chemical resistance.
Chemical resistance
Excellent chemical resistance.
-
Lightweight for improved workability
Made of plastic, it is lightweight, easy to attach and detach the coupling, and easy to move.
Lightweight for improved workability
Made of plastic, it is lightweight, easy to attach and detach the coupling, and easy to move.
KAMLOK ADAPTER Male Thread
Couplings for plant facility piping or built into machinery
- KAMLOK
- Adapter
- Connection size
- 3/4, 1, 1-1/2, 2, 3
- Device side
- Male thread
- Connection size
- R3/4, R1, R1-1/2, R2, R3
| Model No. | 633-FB-PP | |
|---|---|---|
| Main material | ||
| Function | ||
| Fluid | Water (non-potable) Air Oil Food and beverage Chemicals and cosmetics Solvents and paints | |
| Legal compliance | RoHS 2 compliant | |
| Material details | Coupling body | PP |

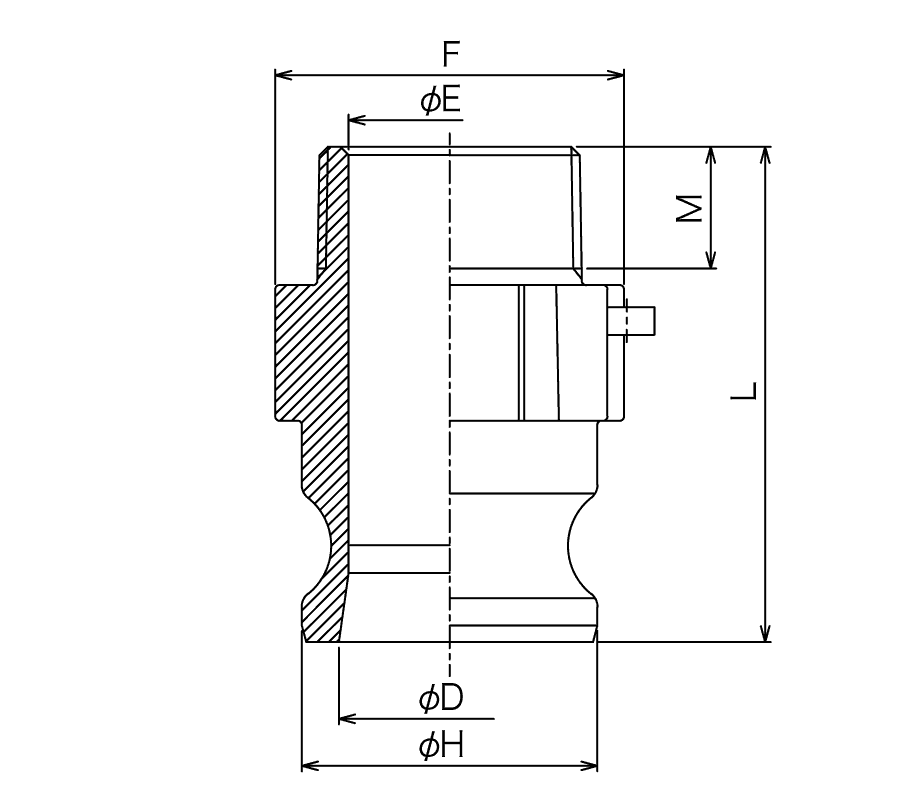

KAMLOK specifications
| Model | Thread standard | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| D | E | F | H | L | M | S | ||
| 633-FB3/4PP | 3/4" | 20 | 19 | 42 | 32 | 74 | 20 | R3/4 |
| 633-FB1PP | 1" | 22 | 24 | 51 | 37 | 84 | 20 | R1 |
| 633-FB1-1/2PP | 1-1/2" | 38 | 38 | 67 | 54 | 92 | 22 | R1-1/2 |
| 633-FB2PP | 2" | 48 | 48 | 81 | 63 | 104 | 24 | R2 |
| 633-FB3PP | 3" | 74 | 72 | 108 | 92 | 130 | 31 | R3 |
* Screws are JIS taper pipe threads.
Related links
Precautions
*We recommend using couplers and adapters made of the same size and material when connecting fittings. Using couplers and adapters made of different materials may lead to corrosion (electrical corrosion).
