GlobalCouplings for plant facility piping or built into machinery
KAMLOK ADAPTER Male Thread
- Model | 633-FB-SST
- Material | Stainless steel
Corrosion-resistant
Other material
Product features
-
Corrosion-resistant
Corrosion-resistant for a long service life. Durable without affecting the fluid.
Corrosion-resistant
Corrosion-resistant for a long service life. Durable without affecting the fluid.
KAMLOK ADAPTER Male Thread
Couplings for plant facility piping or built into machinery
- KAMLOK
- Adapter
- Connection size
- 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4, 5, 6
- Device side
- Male thread
- Connection size
- R1/2, R3/4, R1, R1-1/4, R1-1/2, R2, R2-1/2, R3, R4, R5, R6
| Model No. | 633-FB-SST | |
|---|---|---|
| Main material | ||
| Function | ||
| Fluid | Water (non-potable) Air Oil Food and beverage Chemicals and cosmetics Solvents and paints | |
| Legal compliance | RoHS 2 compliant | |
| Material details | Coupling body | SCS14 (SUS316 equivalent) |

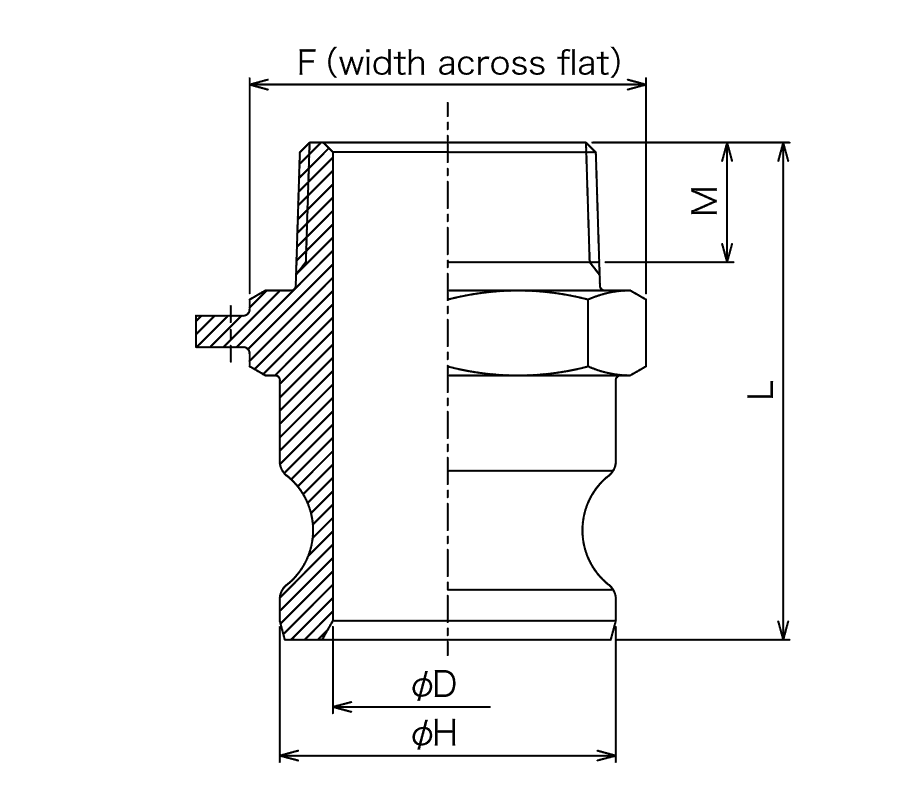

KAMLOK specifications
| Model | Thread standard | Dimensions (mm) | |||||
|---|---|---|---|---|---|---|---|
| D | F | H | L | M | S | ||
| 633-FB1/2SST | 1/2" | 14 | 35 | 32 | 59 | 16 | R1/2 |
| 633-FB3/4SST | 3/4" | 20 | 35 | 32 | 59 | 16 | R3/4 |
| 633-FB1SST | 1" | 24 | 41 | 37 | 73 | 18 | R1 |
| 633-FB1-1/4SST | 1-1/4" | 29 | 48 | 45 | 82 | 21 | R1-1/4 |
| 633-FB1-1/2SST | 1-1/2" | 37 | 59 | 53 | 85 | 21 | R1-1/2 |
| 633-FB2SST | 2" | 48 | 68 | 63 | 95 | 25 | R2 |
| 633-FB2-1/2SST | 2-1/2" | 56 | 84 | 76 | 102 | 29 | R2-1/2 |
| 633-FB3SST | 3" | 73 | 100 | 92 | 106 | 31 | R3 |
| 633-FB4SST | 4" | 98 | 129 | 120 | 123 | 37 | R4 |
| 633-FB5SST | 5" | 121 | 149 | 146 | 122 | 38 | R5 |
| 633-FB6SST | 6" | 149 | 196 | 176 | 127 | 38 | R6 |
* The 1/2" adapter can also be connected to a 3/4" coupler. * The 3/4" adapter can also be connected to a 1/2" coupler. * Screws are JIS taper pipe threads.
Related links
Precautions
*We recommend using couplers and adapters made of the same size and material when connecting fittings. Using couplers and adapters made of different materials may lead to corrosion (electrical corrosion).
