GlobalCouplings for plant facility piping or built into machinery
KAMLOK COUPLER with Flange
- Model | 633-LBS-SST
- Material | Stainless steel
Features
-
Attaches and detaches easily
-
Corrosion-resistant
-
Safe
Download materials
Product features
-
Attaches and detaches easily
A cam arm type that enables couplings to be easily attached and detached, improving workability.
Attaches and detaches easily
A cam arm type that enables couplings to be easily attached and detached, improving workability.
-
Corrosion-resistant
Corrosion-resistant for a long service life. Excellent durability and minimal impact on fluids.
Corrosion-resistant
Corrosion-resistant for a long service life. Excellent durability and minimal impact on fluids.
-
Vibration-resistant for peace of mind
The twin-cam structure is vibration-resistant, preventing the cam arm from coming off for safe operation.
Vibration-resistant for peace of mind
The twin-cam structure is vibration-resistant, preventing the cam arm from coming off for safe operation.
KAMLOK COUPLER with Flange
Couplings for plant facility piping or built into machinery
- KAMLOK
- Coupler
- Connection size
- 1-1/2, 2, 2-1/2, 3, 4
- Device side
- Flange
| Model No. | 633-LBS-SST | |
|---|---|---|
| Main material | ||
| Function | ||
| Fluid | Water (non-potable) Air Oil Food and beverage Chemicals and cosmetics Solvents and paints | |
| Legal compliance | RoHS 2 compliant | |
| Material details | Coupling body | SCS14 (SUS316 equivalent) |
| Cam arm | SCS14 (SUS316 equivalent) | |
| Pin, Ring | SUS304 | |
| Gasket | Buna-N (NBR) *Gasket can be selected according to fluid. | |

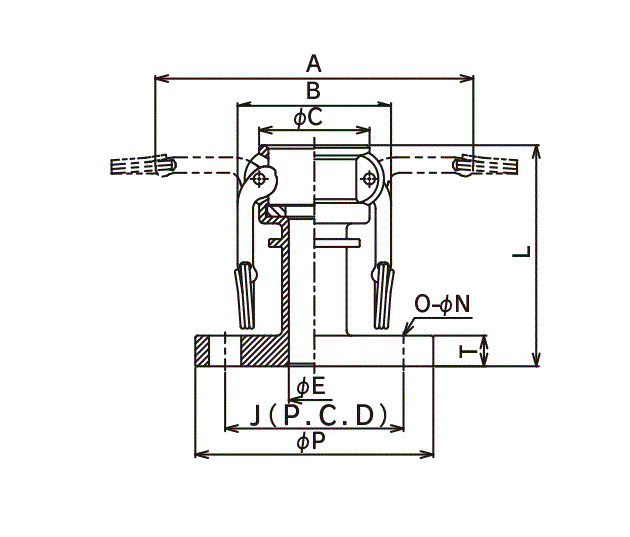

KAMLOK specifications
| Model | Coupling specifications | Dimensions (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | E | J | L | O-N | P | T | ||
| 633-LBS1-1/2SST | 1-1/2" | 187 | 87 | 65 | 31 | 105 | 119 | 4-19 | 140 | 16 |
| 633-LBS2SST | 2" | 196 | 96 | 75 | 43 | 120 | 130 | 4-19 | 155 | 16 |
| 633-LBS2-1/2SST | 2-1/2" | 208 | 108 | 90 | 55 | 140 | 145 | 4-19 | 175 | 18 |
| 633-LBS3SST | 3" | 249 | 137 | 108 | 68 | 150 | 160 | 8-19 | 185 | 18 |
| 633-LBS4SST | 4" | 277 | 166 | 140 | 92 | 175 | 178 | 8-19 | 210 | 18 |
* A Buna-N (NBR) gasket is used as standard. * This item is kept in stock in limited quantities. Contact Toyox to confirm availability and delivery dates.
Related links
Precautions
*We recommend using couplers and adapters made of the same size and material when connecting fittings. Using couplers and adapters made of different materials may lead to corrosion (electrical corrosion).
