GlobalCouplings for plant facility piping or built into machinery
KAMLOK COUPLER Dust Cap TWINLOK TYPE
- Model | 634-BL-SST
- Material | Stainless steel
Features
-
Safe
-
Improved workability
-
Attaches and detaches easily
-
Corrosion-resistant
Related video
Download materials
Other material
Product features
-
Safe
Featuring a locking function that prevents the cam arm from coming off accidentally.
Safe
Featuring a locking function that prevents the cam arm from coming off accidentally.
-
Improved workability
Featuring a cam arm locking function for easy adapter insertion.
Improved workability
Featuring a cam arm locking function for easy adapter insertion.
-
Attaches and detaches easily
A cam arm type that enables couplings to be easily attached and detached, improving workability.
Attaches and detaches easily
A cam arm type that enables couplings to be easily attached and detached, improving workability.
-
Corrosion-resistant
Corrosion-resistant for a long service life. Excellent durability and minimal impact on fluids.
Corrosion-resistant
Corrosion-resistant for a long service life. Excellent durability and minimal impact on fluids.
KAMLOK COUPLER Dust Cap
Couplings for plant facility piping or built into machinery
- KAMLOK
- Coupler
- Connection size
- 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4
- KAMLOK
- Dust cap
- Connection size
- 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4
| Model No. | 634-BL-SST | |
|---|---|---|
| Main material | ||
| Function | ||
| Fluid | Water (non-potable) Air Oil Food and beverage Chemicals and cosmetics Solvents and paints | |
| Legal compliance | RoHS 2 compliant | |
| Material details | Coupling body | SCS14 (SUS316 equivalent) |
| Cam arm | SCS14 (SUS316 equivalent) | |
| Arm fixing part | SUS304 | |
| Pin, Ring | SUS304 | |
| Gasket | Buna-N (NBR) *Gasket can be selected according to fluid. | |
KAMLOK specifications

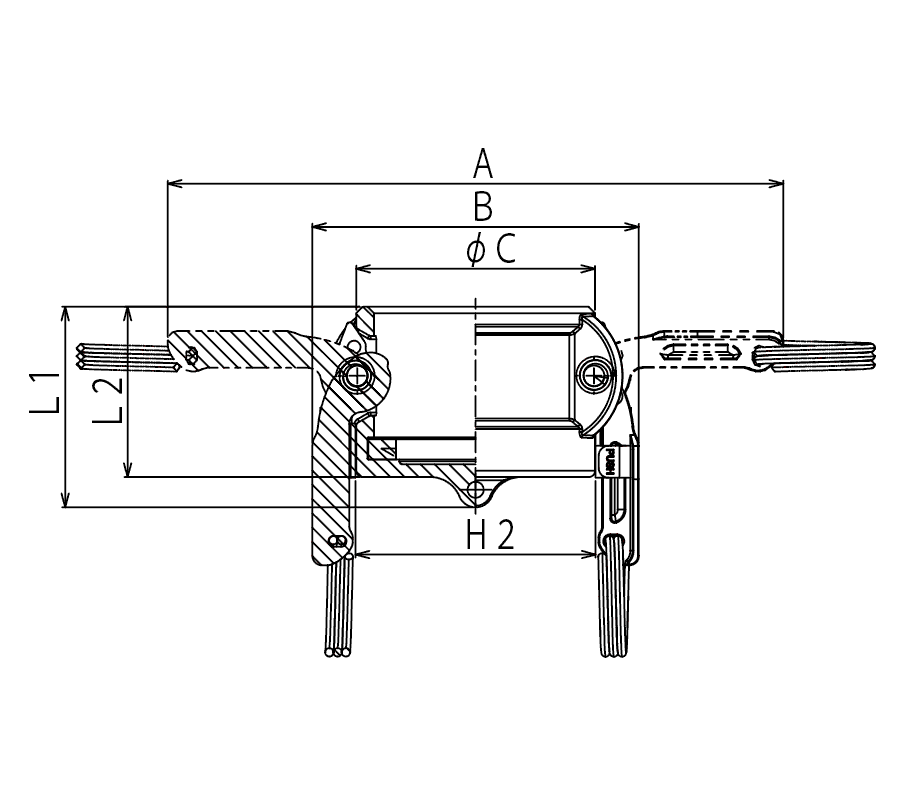

| Model | Coupling specifications | Dimensions (mm) | ||||
|---|---|---|---|---|---|---|
| A | B | C | L1 | L2 | ||
| 634-BL3/4SST | 3/4" | 112 | 66 | 41 | 42 | 34 |
| 634-BL1SST | 1" | 139 | 76 | 47 | 50 | 41 |
| 634-BL1-1/4SST | 1-1/4" | 176 | 85 | 58 | 56 | 47 |
| 634-BL1-1/2SST | 1-1/2" | 184 | 93 | 65 | 57 | 47 |
| 634-BL2SST | 2" | 193 | 103 | 75 | 63 | 54 |
| 634-BL2-1/2SST | 2-1/2" | 205 | 125 | 90 | 68 | 57 |
| 634-BL3SST | 3" | 248 | 141 | 108 | 71 | 61 |
| 634-BL4SST | 4" | 277 | 169 | 140 | 72 | 61 |
* The 3/4" coupler can also be connected to a 1/2" adapter. * Specifications are the same for 1/2" and 3/4" couplers. * A Buna-N (NBR) gasket is used as standard.
Related links
Precautions
*We recommend using couplers and adapters made of the same size and material when connecting fittings. Using couplers and adapters made of different materials may lead to corrosion (electrical corrosion).
*Do not use the dust cap for pressure-resistant applications.
