KAMLOK ADAPTER Female Thread

  • Model | 633-AB-AL
  • Material | Aluminum alloy

Features

  • Easy connection

Other material

Product features

  • Easy connection

  • Overview
  • Support /
    Downloads

KAMLOK ADAPTER Female Thread

Couplings for plant facility piping or built into machinery

KAMLOK
Adapter
Connection size
1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4, 5, 6
Device side
Female thread
Connection size
Rc1/2, Rc3/4, Rc1, Rc1-1/4, Rc1-1/2, Rc2, Rc2-1/2, Rc3, Rc4, Rc5, Rc6
Model No. 633-AB-AL
Main material
  • Aluminum alloy
Function
Fluid Water (non-potable) Air Oil
Legal compliance RoHS 2 compliant
Material details Coupling body Aluminum alloy (ADC12, 5"~ AC4CH)

KAMLOK specifications

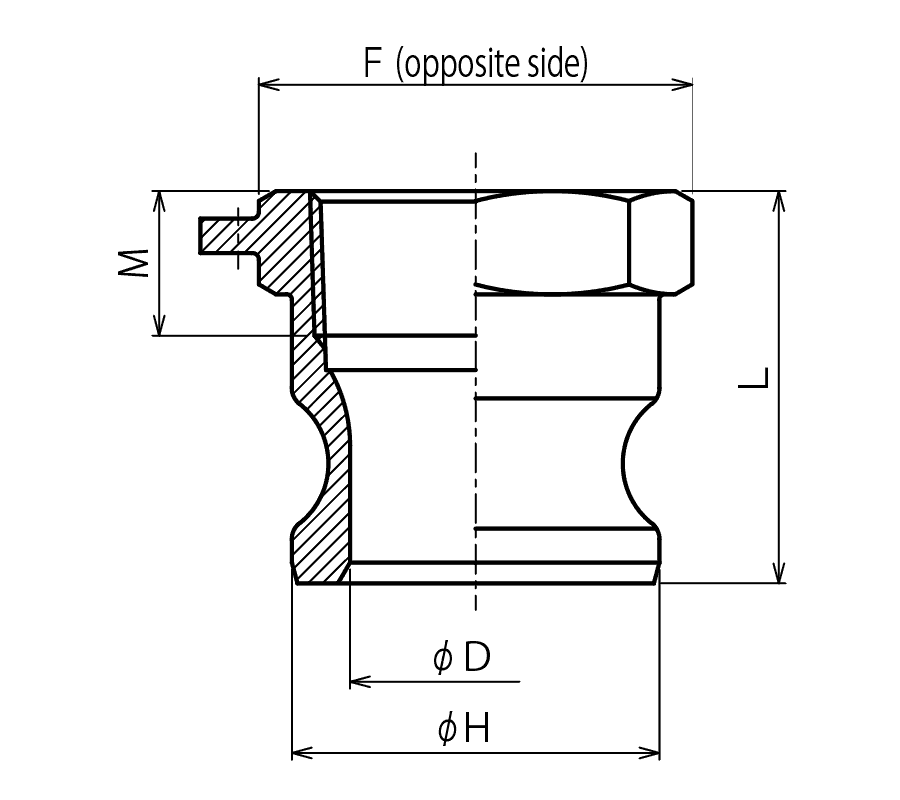

Model Thread standard Dimensions (mm)
D F H L M S
633-AB1/2AL 1/2" 14 35 32 41 15 Rc1/2
633-AB3/4AL 3/4" 20 35 32 41 15 Rc3/4
633-AB1AL 1" 24 41 37 50 18 Rc1
633-AB1-1/4AL 1-1/4" 29 48 45 56 18 Rc1-1/4
633-AB1-1/2AL 1-1/2" 37 59 53 57 21 Rc1-1/2
633-AB2AL 2" 48 68 63 62 25 Rc2
633-AB2-1/2AL 2-1/2" 56 84 76 84 28 Rc2-1/2
633-AB3AL 3" 72 100 92 71 31 Rc3
633-AB4AL 4" 98 129 120 81 37 Rc4
633-AB5AL 5" 121 149 146 85 40 Rc5
633-AB6AL 6" 149 191 176 86 41 Rc6

* The 1/2" adapter can also be connected to a 3/4" coupler. * The 3/4" adapter can also be connected to a 1/2" coupler. * Die-casting used for 4" and smaller products. * Screws are JIS taper pipe threads.

Related links

Precautions

*We recommend using couplers and adapters made of the same size and material when connecting fittings. Using couplers and adapters made of different materials may lead to corrosion (electrical corrosion).
