GlobalCouplings for plant facility piping or built into machinery (for TOYOSILICONE STEAM/TOYOSILICONE THERMO Hoses)
PIPE THREAD MALE (Hose Assemblies)
- Model | H01B
- Material | Brass
Features
-
Leak and disconnection prevention
Download materials
Product features
-
Leak and disconnection prevention
The hose and coupling are crimped for safe usage without hose disconnections or fluid leakage.
Leak and disconnection prevention
The hose and coupling are crimped for safe usage without hose disconnections or fluid leakage.
-
Safe and long service life
Safe and long service life as the cover and nipple shapes prevent the hose’s inner tube from breaking.
Safe and long service life
Safe and long service life as the cover and nipple shapes prevent the hose’s inner tube from breaking.
PIPE THREAD MALE (Hose Assemblies)
Couplings for plant facility piping or built into machinery (for TOYOSILICONE STEAM/TOYOSILICONE THERMO Hoses)
- Hose side
- Crimped
- Hose inner diameter (mm)
- 9, 12, 19, 25
- Device side
- Male thread
- Connection size
- R3/8, R1/2, R3/4, R1
| Model No. | H01B | |
|---|---|---|
| Main material | ||
| Function | ||
| Fluid | Water (non-potable) Air Oil Chemicals and cosmetics | |
| Legal compliance | RoHS 2 compliant | |
| Material details | Hose nipple | Brass |
| Coupling cover | aluminum | |

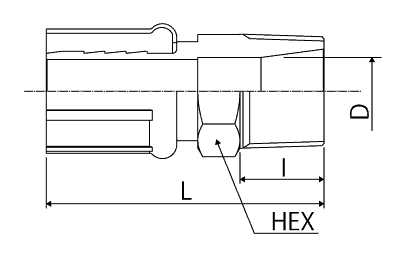

Coupling specifications
| Model | Compatible hose inner diameter (mm) |
Thread standard | Dimensions (mm) | ||||
|---|---|---|---|---|---|---|---|
| D | E | H | HEX | I | |||
| H01B-9 | 9 | R3/8 | 7 | 26 | 20 | 17 | 15 |
| H01B-12 | 12 | R1/2 | 9.5 | 31 | 23 | 22 | 20 |
| H01B-19 | 19 | R3/4 | 15 | 35 | 31 | 27 | 20 |
| H01B-25 | 25 | R1 | 20.5 | 37 | 31 | 35 | 22 |
Tolerance Ranges for Hose Assembly Length According to JISB8360
| Assembly length (mm) | Tolerance range (mm) | |
|---|---|---|
| Under 500 | +10 | 0 |
| 500 to 999 | +15 | 0 |
| 1000 to 1999 | +20 | 0 |
| 2000 to 4999 | +1.0% | 0 |
| Over 5000 | +2.0% | 0 |
Precautions
*Because of the presence of threads,This is not appropriate for sanitary hoses (such as used for foods). Use for foods may result in safety issues in the product.
*Couplings are not sold singly.
Compatible Hoses: 2
|
Hose name | TOYOSILICONE STEAM HOSE | TOYOSILICONE THERMO HOSE |
|---|---|---|---|
| Main material | Silicone rubber | Silicone rubber | |
| Operating temperature range | -30℃~140℃ | -30℃~120℃ | |
| Model No. | TSISTM | TSITH | |
| Coupling model |
Compatible hose nominal inner diameter (mm)
Coupling specifications
|
 |
 |
| H01B-9 |
9
R3/8
|
◯ | ◯ |
| H01B-12 |
12
R1/2
|
◯ | ◯ |
| H01B-19 |
19
R3/4
|
◯ | ◯ |
| H01B-25 |
25
R1
|
◯ | ◯ |
