・TOYOCONNECTOR LIGHT TC2-P

Couplings for plant facility piping (for Toyox hoses)

Model | TC2-P
Material | Resin (PP)

Features

Leak and disconnection prevention
Reduced time spent on piping work
Easy installation
Lightweight

Product features

Leak and disconnection prevention

Hose insertion is easy and the cap nut tightens without gaps to prevent the hose from coming loose and leaking fluid.

Leak and disconnection prevention

Hose insertion is easy and the cap nut tightens without gaps to prevent the hose from coming loose and leaking fluid.
Reduces Piping Work

Hexagonal nut designed with dimensions for use with JIS-standard wrenches, eliminating the need for special tools and increasing work efficiency. Uniform installation with no need for cumbersome clamp alignment, torque control, or retightening.

Reduces Piping Work

Hexagonal nut designed with dimensions for use with JIS-standard wrenches, eliminating the need for special tools and increasing work efficiency. Uniform installation with no need for cumbersome clamp alignment, torque control, or retightening.
Easy installation

Quicker and easier insertion thanks to the coupling insert being the same size as the hose.

Easy installation

Quicker and easier insertion thanks to the coupling insert being the same size as the hose.
Lightweight

Fully resin hose coupling that is lightweight for improved workability.

Lightweight

Fully resin hose coupling that is lightweight for improved workability.

Overview
Support /
Downloads
Compatible Hoses
Replacement Parts /
Installation Methods

TOYOCONNECTOR LIGHT TC2-P

Couplings for plant facility piping (for Toyox hoses)

Hose side: Cap nut
Hose inner diameter (mm): 15, 19, 25

Device side: Male thread
Connection size: R1/2, R3/4, R1

Model No.		TC2-P
Main material		Resin (PP)
Function		Easy insertion Standardization of work Leak and disconnection prevention
Fluid		Water (non-potable)　Air　Oil　Chemicals and cosmetics
Legal compliance		RoHS 2 compliant
Material details	Nipple	PP
	Cap nut	PP
	Sleeve	POM

Coupling specifications

Model	Compatible hose inner diameter (mm)	Thread standard	Dimensions (mm)				Weight (g)	No. of packaged items
Model	Compatible hose inner diameter (mm)	Thread standard	L	Φd1	HEX1	HEX2	Weight (g)	No. of packaged items
TC2-P15-R1/2	15	R1/2	60.0	10.0	36	36	54	60
TC2-P19-R3/4	19	R3/4	65.5	14.5	41	41	70	60
TC2-P25-R1	25	R1	72.0	20.0	46	46	85	50

Precautions

*For indoor use only
*Not for reuse
*Because of the presence of threads,This is not appropriate for sanitary hoses (such as used for foods). Use for foods may result in safety issues in the product.
*The TOYOCONNECTOR is designed as a genuine coupling for Toyox hoses. Toyox makes no guarantee that the TOYOCONNECTOR will function properly if connected to another manufacturer's hose.
*The operating temperature range is 0 to 60°C. Refer to the instruction manual for operating pressure ranges.

Downloads

Support

Compatible Hoses: 12

Coupling material	Hose name	ECORON HOSE	FLAMEBLC HOSE	HYPER TOYORON HOSE	HYBRID TOYORON HOSE	SUPER TOYORON HOSE	TOYOBIO PRO HOSE	TOYORON HOSE	TOYOSPRING HOSE	TOYOSIGNAL HOSE	FLAMEBLC HYBRID UL HOSE	HYBRID TOYODROP HOSE	ECORON-S HOSE
	Main material	Polyolefin resin	Soft PVC	Soft PVC	Soft PVC	Soft PVC	Soft PVC	Soft PVC	Soft PVC	Soft PVC	Soft PVC	Soft PVC	Polyolefin resin
	Operating temperature range	-5℃~60℃	-5℃~60℃	-5℃~70℃	-5℃~60℃	-5℃~60℃	-5℃~60℃	-5℃~60℃	-5℃~60℃	-5℃~60℃	-5℃~60℃	-5℃~60℃	-5℃~60℃
	Model No.	EC	FB	HPT	HTR	ST	TBP	TR	TS	TSG	FBH	HTD	ECS
Coupling model	Compatible hose nominal inner diameter (mm) Coupling specifications
TC2-P15-R1/2	15 R1/2	◯	◯	◯	◯	◯	◯	◯	◯	◯	◯	◯	-
TC2-P19-R3/4	19 R3/4	◯	◯	◯	◯	◯	◯	◯	◯	◯	-	◯	-
TC2-P25-R1	25 R1	◯	◯	◯	◯	◯	◯	◯	◯	◯	-	◯	◯

Replacement parts are not available.

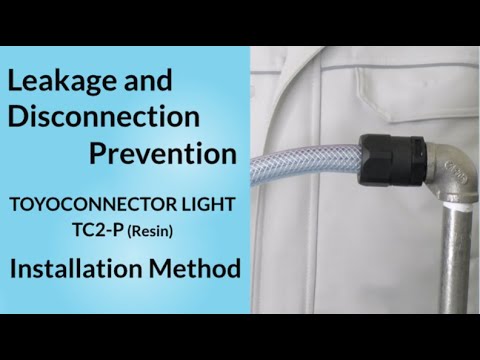

Attachment Method

1Wind sealing tape about seven times starting at the second thread to prevent leaking and damage to the threads. *Refrain from using liquid sealant, as some kinds contain solvents, which can corrode and damage resin.
2Attach the nipple to the machine.
3Pass the cap nut through the hose.
4

Insert the hose all the way to the end of the nipple.
*Check to ensure that the sleeve pins and the nipple pin holes are in alignment.
5Fasten the cap nut until no gap remains.
