GlobalClamps for various hose assemblies

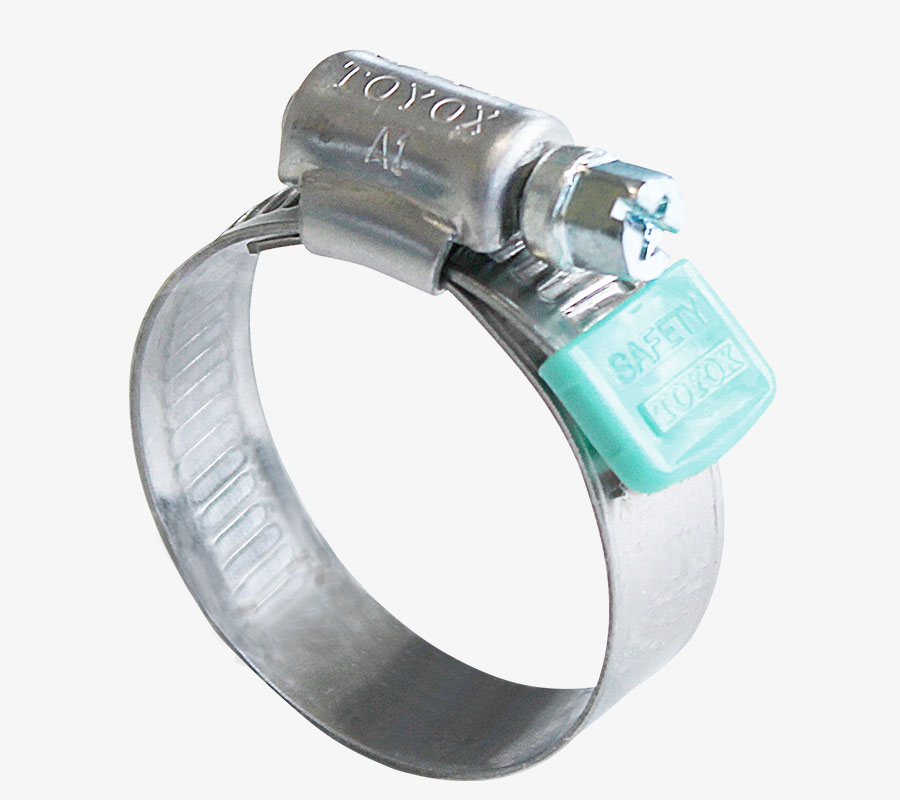

SAFETY all stainless steel SB type
- Model | SB
- SAFETY CLAMP-SB
Features
- Rust resistant
- Safety
- Increased efficiency
Download materials
Product features
-
Rust resistant
The all stainless steel construction resists rusting
Rust resistant
The all stainless steel construction resists rusting
-
Safety
The safety cap at the end of the clamp prevents injury
Fastens with a Phillips screwdriver for a safe fit without slipping
The inside of the band is flat so hoses are not damaged
Safety
The safety cap at the end of the clamp prevents injury
Fastens with a Phillips screwdriver for a safe fit without slipping
The inside of the band is flat so hoses are not damaged -
Increased efficiency
Requires only a light tightening torque for a highly airtight fit
Increased efficiency
Requires only a light tightening torque for a highly airtight fit
SAFETY all stainless steel SB type
Clamps for various hose assemblies
| Model No. | SB | |
|---|---|---|
| Application | Clamps for various hose assemblies | |
| Legal compliance | RoHS 2 compliant | |
| Material | Clamp | Stainless steel SUS304 |
| Housing | Stainless steel SUS304 | |
| Bolt | Stainless steel SUS304 | |
| Safety cap | PE | |
Hose clamp specifications table
| Model | Working range | Compatible hose size (inner diameter [mm]) | Maximum tightening torque (kg/roll) |
Quantity (pieces) |
No. of packaged items | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Outer diameter (mm) | TOYORON | TOYOSPRING | DELIVER | ARROW | TOYOSILICONE | Suction | Water transmission and draining | ||||
| SB-12 | 8～12 | 4・6 | 6 | 4.8 | 3.5 | 10 | 100 | ||||
| SB-15 | 10～15 | 8・9 | 8・9 | 6.5・8 | 4.8 | 3.5 | 10 | 100 | |||
| SB-17 | 11～17 | 9・10 | 9 | 8・9.5 | 6.3 | 3.5 | 10 | 100 | |||
| SB-20 | 13～20 | 12 | 12 | 12.7 | 7.9 | 3.5 | 10 | 100 | |||
| SB-22 | 16～22 | 15 | 15 | 15 | 13 | 9.5 | 3.5 | 10 | 100 | ||
| SB-25 | 18～25 | 15 | 15 | 15 | 12.7 | 19 | 5.0 | 10 | 100 | ||
| SB-30 | 22～30 | 19・21.5 | 19 | 19 | 15.9 | 5.0 | 10 | 100 | |||
| SB-35 | 25～35 | 25 | 25 | 25 | 19 | 25 | 5.0 | 10 | 100 | ||
| SB-40 | 27～40 | 19・25.4 | 32 | 5.0 | 10 | 50 | |||||
| SB-45 | 30～45 | 32 | 32 | 32 | 25.4・32 | 40 | 5.0 | 10 | 50 | ||
| SB-50 | 35～50 | 38 | 38 | 32 | 38 | 5.0 | 10 | 50 | |||
| SB-55 | 40～55 | 38 | 38.1 | 50 | 6.0 | 10 | 50 | ||||
| SB-60 | 45～60 | 45 | 38.1 | 6.0 | 10 | 50 | |||||
| SB-70 | 55～70 | 50 | 50 | 50.8 | 50 | 65 | 6.0 | 10 | 50 | ||
| SB-80 | 60～80 | 63 | 63 | 50.8 | 65 | 75 | 6.0 | 10 | 20 | ||
| SB-90 | 70～90 | 63 | 63 | 6.0 | 10 | 20 | |||||
| SB-100 | 85～100 | 75 | 75 | 75 | 6.0 | 10 | 20 | ||||
| SB-110 | 95～110 | 90 | 90 | 100 | 7.0 | 10 | 20 | ||||
| SB-120 | 105～120 | 100 | 100 | 7.0 | 10 | 20 | |||||
- Clamp width: SB-12 to SB-22: 9 mm, SB-25 to SB-120: 13 mm
- Width across flats of the hexagonal bolt: 7 mm
